2 Instrument description

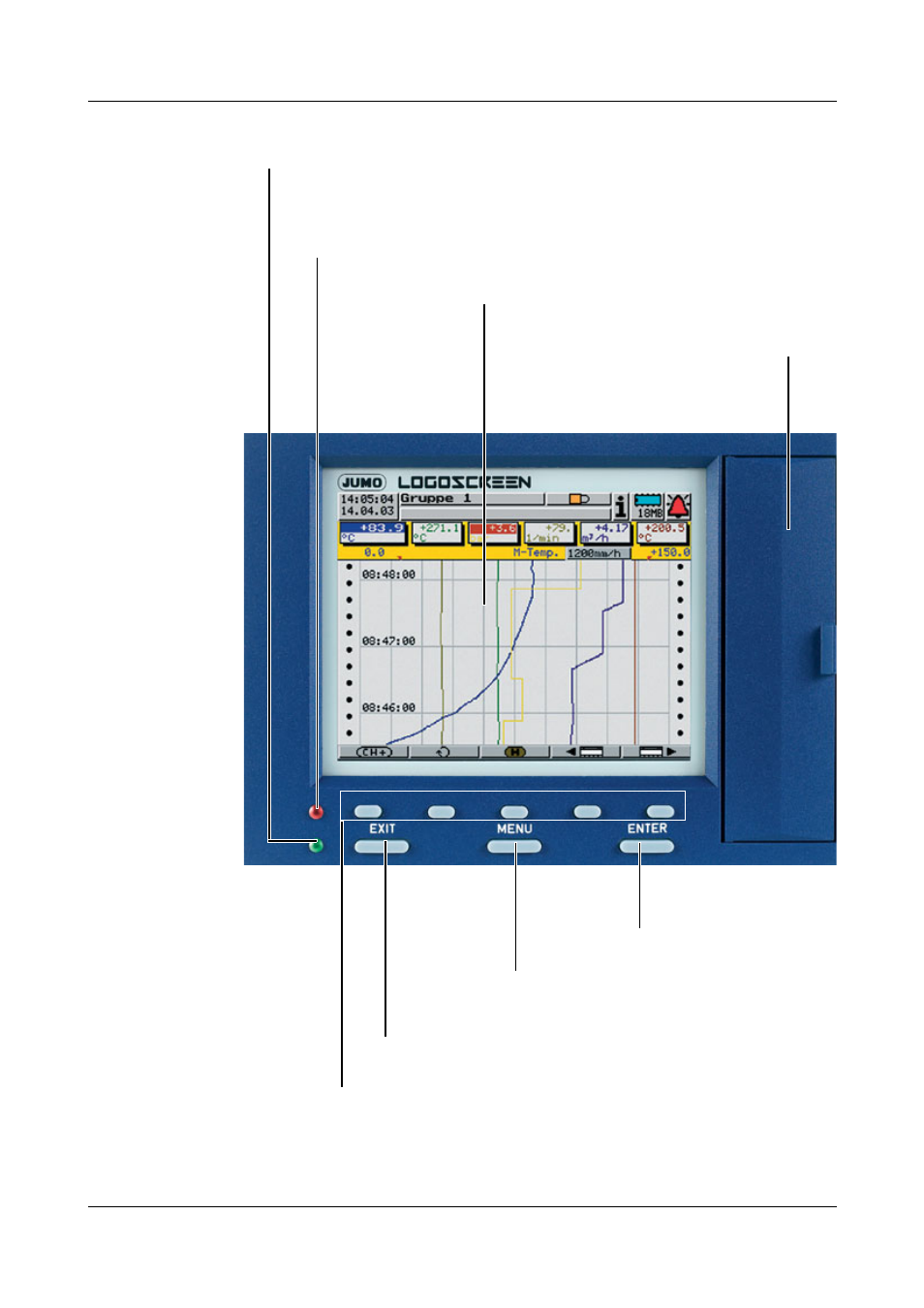

2.1 Displays and controls

1. CompactFlash

is a registered trademark of the SanDisk Corporati

on.

2. Not from the configuration level if a parameter has already been modified there.

Power LED (green)
is on continuously as soon as power is applied.
Flashes when screen saving is active.
Pressing any key will de-activate screen saving.

Status LED (red)
is on continuously while an alarm is present

Cover

for the CompactFlash

slot

and the setup plug connection

Enter
- select menu item
- enter selection

Menu
back to the start menu

Exit
- previous window
- cancel current action

Softkeys
screen-dependent functions, represented by text or symbols

Color display
320 x 240 pixel, 27 colors
