23
3 Operation and visualization
3.2 Visualization
Start menu➔
Visualization After selecting the level Start menu ➔ Visualization, the group manager
appears.

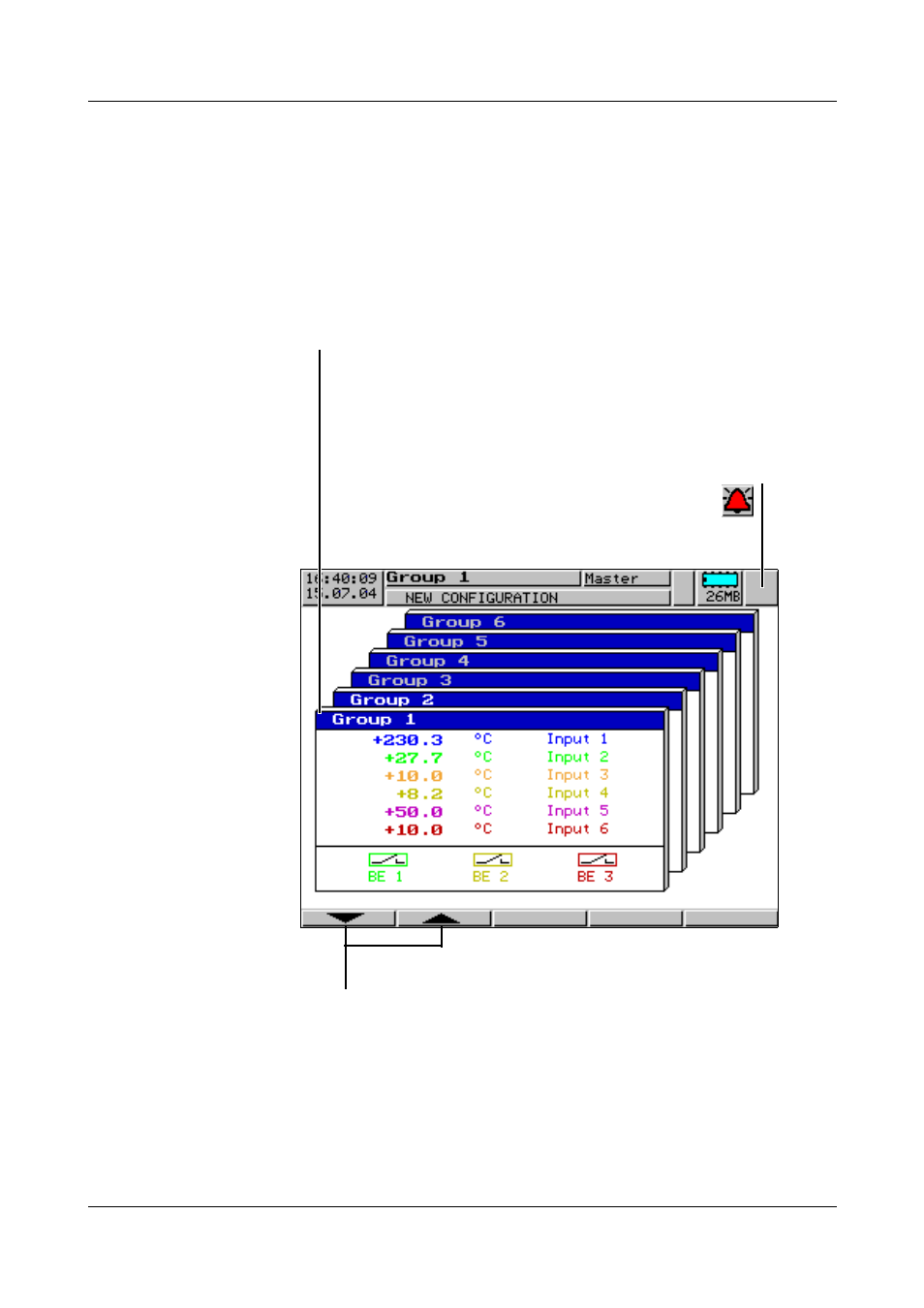

Group
manager The instrument manages six visualization groups of measurement inputs. Each
group can consist of up to six analog and three digital channels.
Operation within the visualization level is always group-oriented.
H
Confirmation of a group with E ,
is followed by a switch to vertical diagram representation.
Group window
The current analog and digital measurements,
as well as the channel name, are displayed here.
The group name is shown on a red background in the window title if
an alarm is present within the group. The measurement of the channel
which triggered the alarm is also shown on a red background.
h Select group
If an alarm is present within a group, the alarm bell is
shown flashing.
