3 Operation and visualization
Completed

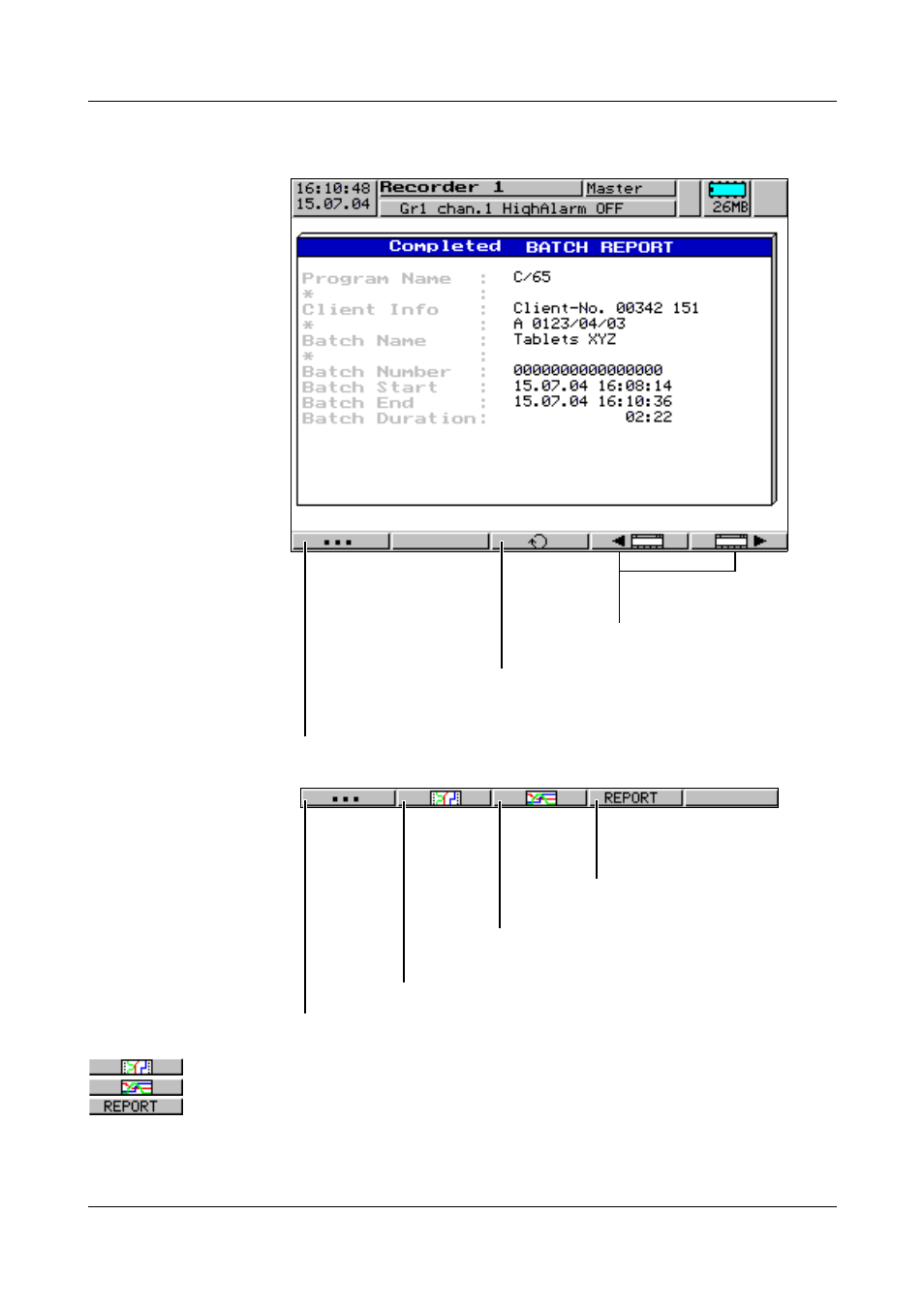

batch report The screenshot shows a completed batch report that does not include the
possibility of executing an electronic signature.
How to operate the “vertical” and “horizontal diagrams” is described in
Chapter 3.2.3 “Evaluation of the stored measurement data”.
Pressing the D key will call up the batch report again.
Change between “completed” and “current”
batch report
Change to the previous/
next visualization
Switch the four right-hand softkeys to additional functions
Switch the four right-hand softkeys to original functions
Show data of batch report as history in “vertical diagram” .
Show data of batch report as history in
“horizontal diagram”
.
Show report data of batch
report
