15
2 Instrument description

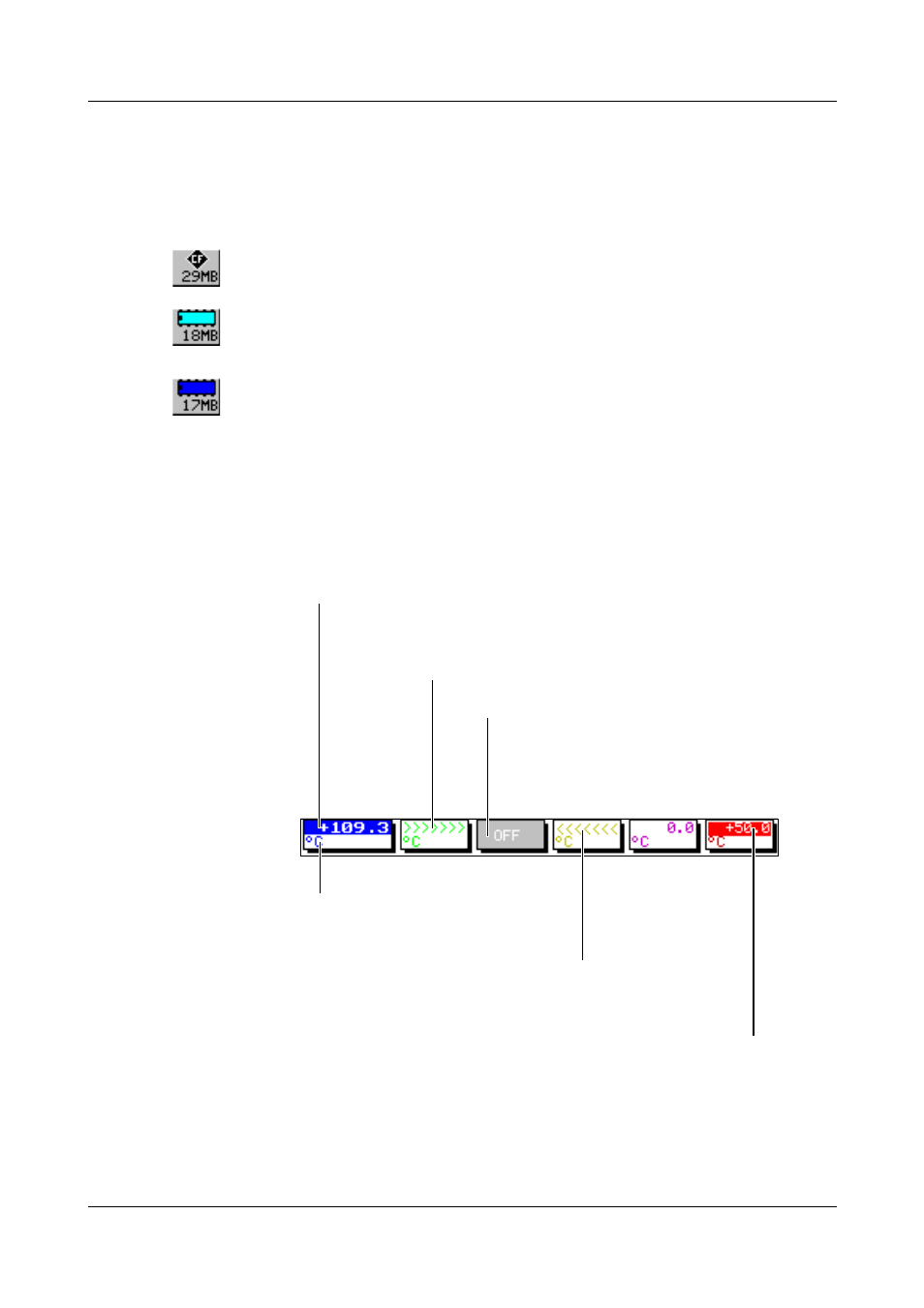

CompactFlash / internal memory
indicates the free capacity of the CompactFlash memory or the internal
backup memory. Which symbol is shown, can be set in the “Parameterization”
menu.
v Chapter 3.6 “CompactFlash card”
Free capacity of the CompactFlash memory card.
Free capacity of the internal backup memory.
This turquoise symbol is shown when the data are read out via the
CompactFlash memory card.
Free capacity of the internal backup memory.
This dark blue symbol is shown when the data are read out via the serial
interface or the Ethernet interface.
Alarm
If an alarm occurs (e.g. out-of-limit), the (alarm) bell flashes in this field.
Channel line The channel line shows the measured values for the active channels of the
group together with their unit. In addition, alarms and out-of-range conditions
are made directly visible in this line.
Current channel
The measured value of the currently selected
channel is shown inversed, in large letters.
OFF
This channel has been switched off
in the current group
Unit of measurement
Alarm
If an alarm (e.g. out-of-limit) is present,
the measurement of the channel is shown on a red background
Overrange
Underrange
