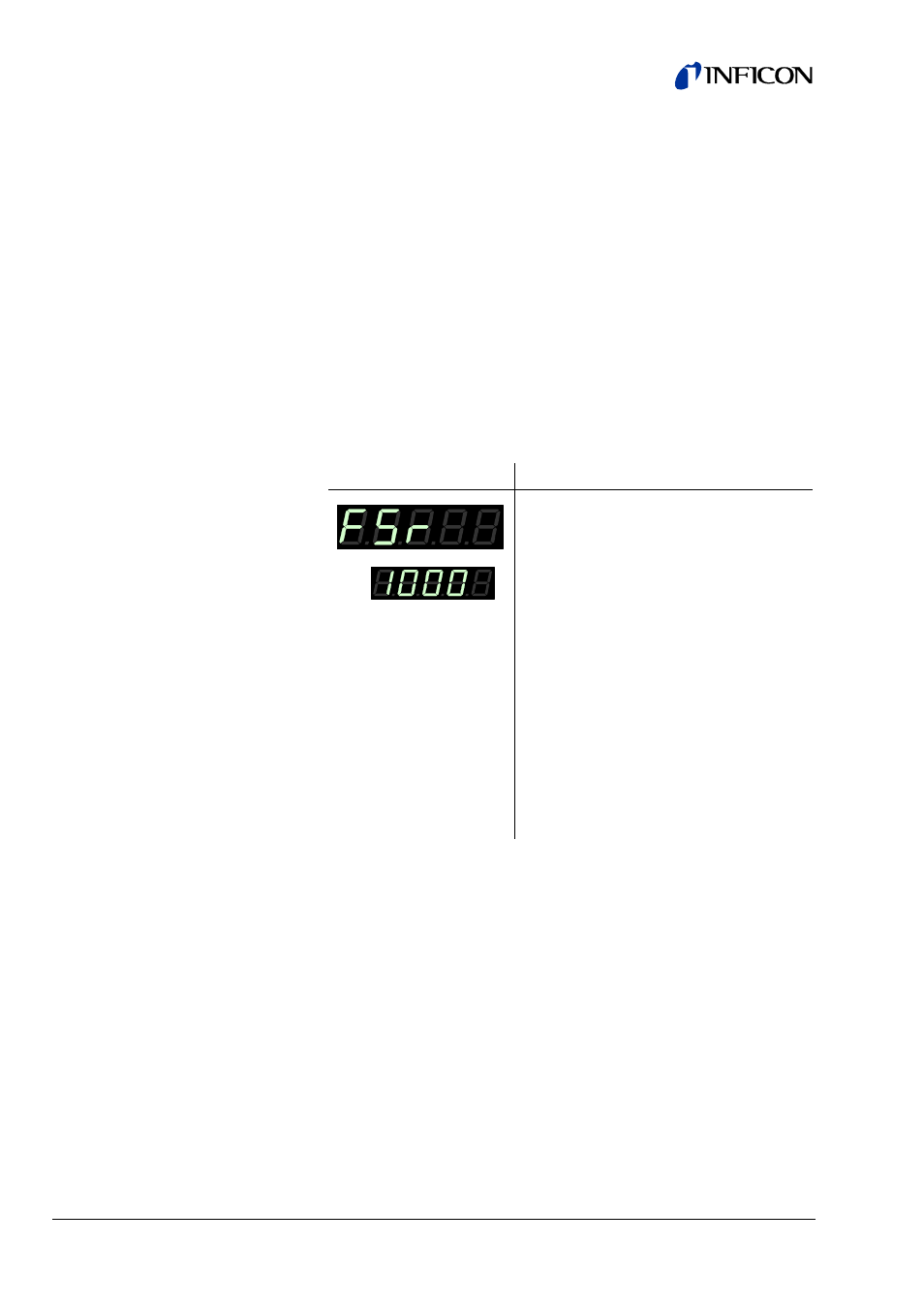

The full scale value of the measurement range (Full
S
cale range) of the linear gauges has to be defined by
the user; the full scale value of logarithmic gauges is
automatically recognized.
Available for:
† Pirani (PSG)
† Pirani/Capacitive (PCG)
† Cold cathode (PEG)
† Cold cathode/Pirani (MPG)
† Hot cathode (BAG)
† Hot cathode/Pirani
(BPG, HPG)
; Capacitive (CDG)
† Hot cathode/Pirani/Capacitive (BCG)
Value
e.g.:
Ö 0.01 mbar
0.01 Torr, 0.02 Torr, 0.05 Torr
0.10 mbar, 0.25 mbar, 0.50 mbar
0.10 Torr, 0.25 Torr, 0.50 Torr
1 mbar, 2 mbar, 5 mbar
1 Torr, 2 Torr, 5 Torr
10 mbar, 20 mbar, 50 mbar
10 Torr, 20 Torr, 50 Torr
100 mbar, 200 mbar, 500 mbar
100 Torr, 200 Torr, 500 Torr
1000 mbar, 1100 mbar
1000 Torr
2 bar, 5 bar, 10 bar, 50 bar
Conversion table → Appendix, 81
For displaying the offset correction and zero adjustment
of the gauge and adjustment to the currently measured
value (in the range -5 ... +110% of the full scale setting).
Measurement range
of capacitive gauges
Offset correction of
the controller
