18

tinb01e1-f (2011-07) VGC401.om

DANGER

DANGER: protection class of the control
panel
If the product is installed in a rack, it is likely
to lower the protection class of the rack
(protection against foreign bodies and water)
e.g. according to the EN 60204-1 regulations
for switching cabinets.
Take appropriate measures for the control
panel to meet the specifications of the pro-
tection class.

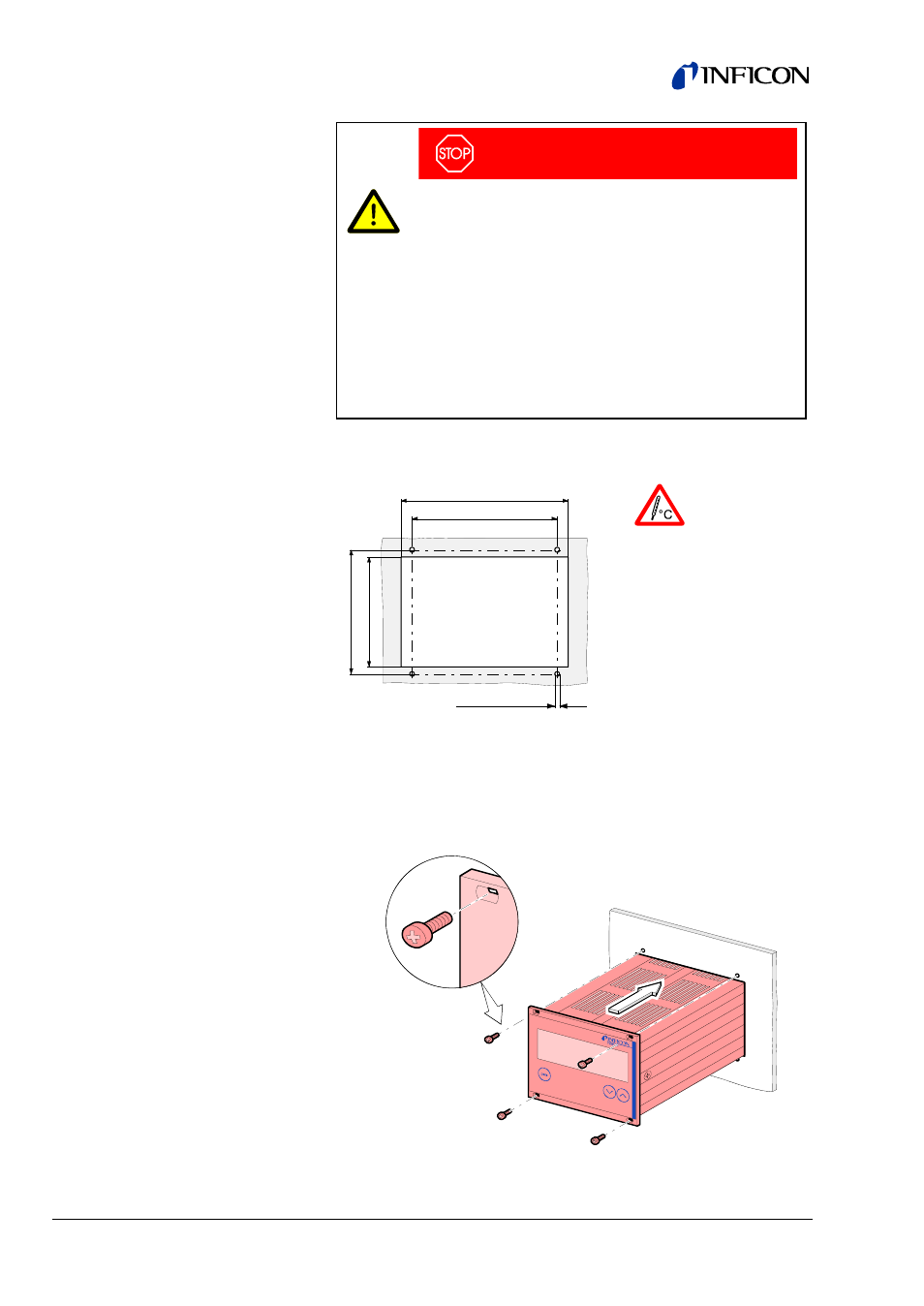

For mounting the VGC401 into a control panel, the fol-
lowing cut-out is required:

105

91.2

78

69

M3 or ø 3.5

The admissible
maximum ambient
temperature (

9)

must not be
exceeded neither
the air circulation
obstructed.

For reducing the mechanical strain on the front panel,
preferably support the unit.

n

Slide the VGC401 into the cut-out of the control

panel …

… and secure it with four M3 or equivalent screws.

3.2.2 Installation in a

Control Panel
