Installation process
Table 8-13. Install the detector as follows

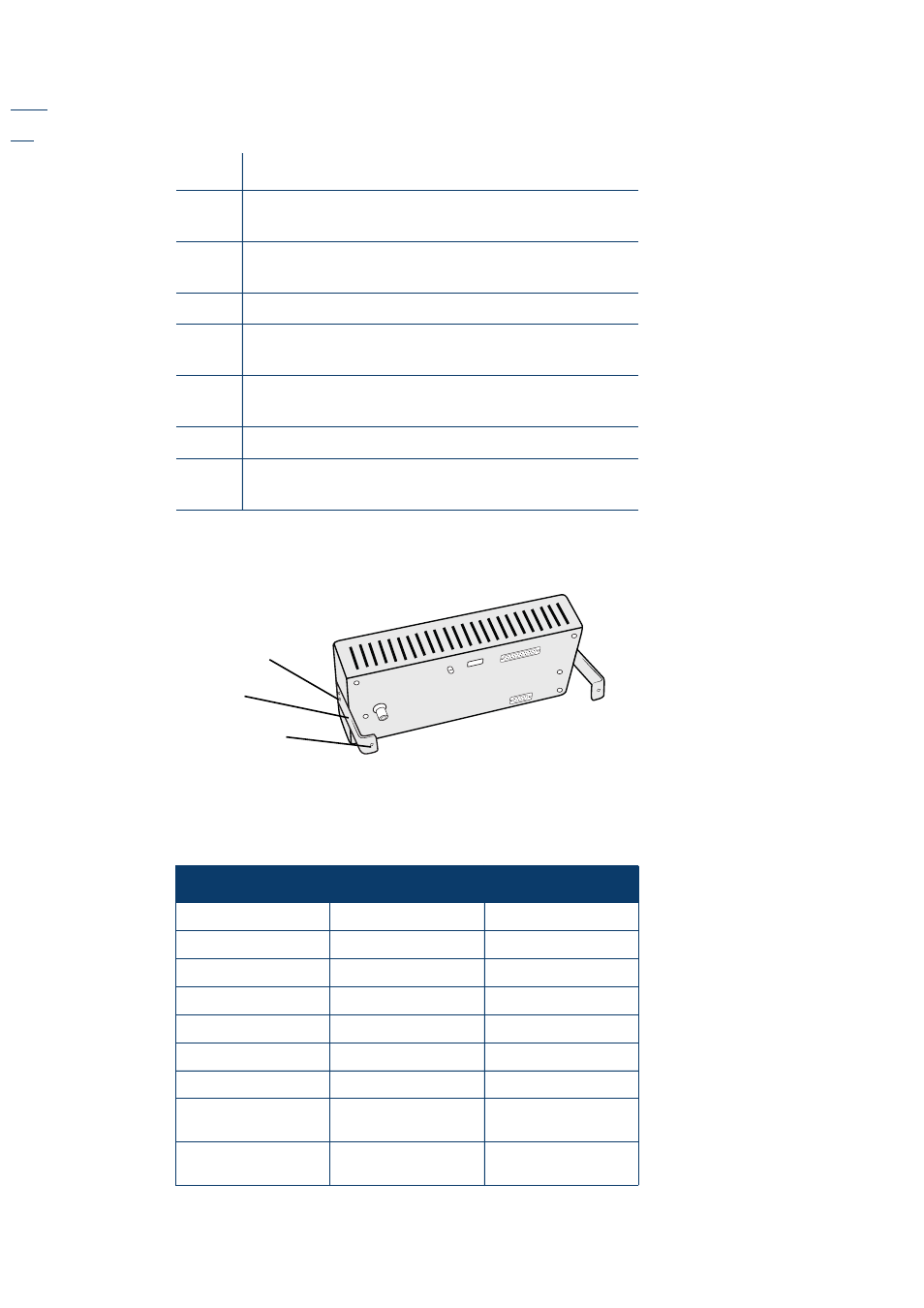

Fig 8-8. Fixing the mounting brackets.
See “Sensistor ISH2000 specifications” on page 50 for electrical connections
8.18 Default parameters
Table 8-14. Range and default settings of all Sensistor ISH2000 parameters.
Step Action
1. Cut hole in panel according to figure above, and
remove burrs.
2. Check that rubber o-ring is in correct position in
the grove around the edge of the detector.
3. Put the detector in place in the panel hole.
4. Hold the panel in place while fixing the mounting
brackets to the detector (See Figure 8-7).
5. Align the detector horizontally and lock it by
tightening the 4 set screws.
6. Lock the set screws with the locking nuts.
7. Connect ground terminal to protective ground of
cabinet.
Bracket to panel screw
Bracket to unit
Bracket
Parameter Range Default
APC Time A 0.0 - 6000.0 s 10.0 s
APC Time B 0.0 - 6000.0 s 0 s
APC Time C 0.0 - 6000.0 s 0 s
APC Time D 0.0 - 6000.0 s 0 s
Audio Base Frequency Several Choices 400 HZ
Auto Range ON/OFF ON
Audio Ready Pulse ON/OFF ON
Audio Threshold
(Locating) 0 - 100% 0%
Audio Threshold
(Measuring Mode) 0 - 100% 0%
