3 Controls and connections
The controls and connections are discussed and shown in this chapter.

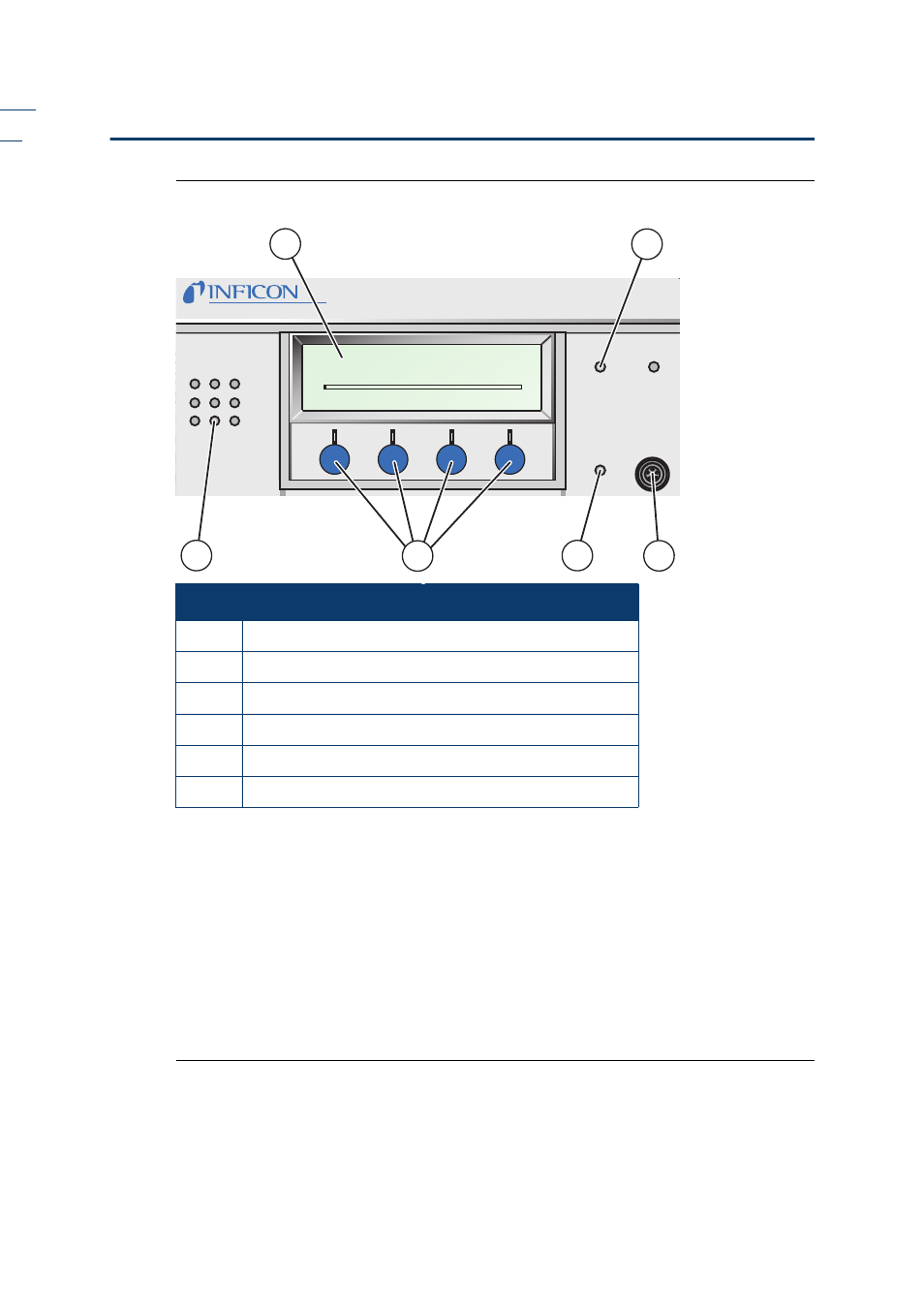

Fig 3-1. Sensistor ISH2000 controls and indicators
3.1 Display
The display shows:
•
Indicator bar in Locating Mode and the figures in Measuring Mode.
• Eight main menus. Their positions are indicated on a horizontal scale. Change from
one menu to another using the
< and > buttons.
• Main menus have sub-menus, which are also indicated by horizontal scales and can
be selected using the
< and > buttons.
• Scales for setting numeric values, languages, etc.
• Messages.
Sensistor ISH2000C:
•
A battery status indicator in the upper right corner.
Item Description
1 Display
2 Loudspeaker
3 Control push-buttons
4 Earphone socket
5 Probe connector
6 LEDs
(1.00E+01)
0.0 cc/s
Air
2 3
6
4 5
Sensistor ISH2000
1
Volume Sens Cal Menu
Combined Mode
