8 reference section, 1 menu system, Reference section – INFICON Sensistor ISH2000 Hydrogen Leak Detector User Manual
Page 22: Menu system
Hydrogen leak detector Sensistor ISH2000
-
Operating Manual
22
OM-Sensistor ISH2000-EN-201304
EN
8
Reference section
This section of the user manual consists of an in-depth explanation and additional
information, which completes the operating manual with all relevant information.
8.1 Menu system
The menu system is designed as a tree structure similar to that used in mobile
telephones. The display shows all the levels when browsing down through the
menus so that you can always see exactly where you are.
See “Menu Overview” on page 54.

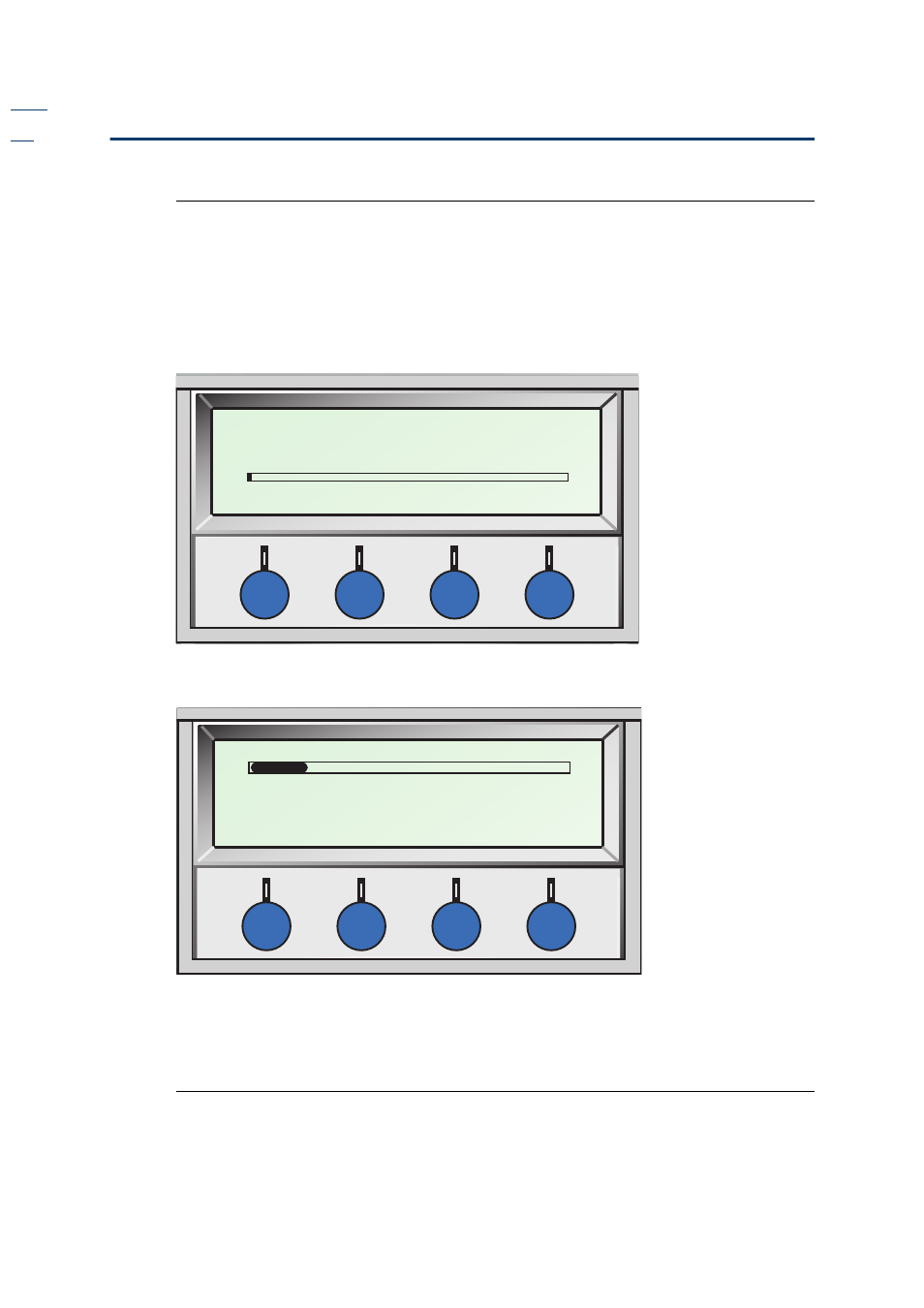

Fig 8-1. Sensistor ISH2000 start screen.
To enter the menus, press
Menu
(button 4).
Fig 8-2. Sensistor ISH2000 main menu screen
Press
<
and
>
(button 2 and button 3) to choose between main menus.
If no setting is made in a menu or its sub menus within 60 seconds, the instrument
will revert to the
Locating Mode/Measuring Mode
.
For more information about the menu, see “Menu Overview” on page 54.
1 2 3 4
(1.00E+01)
0.0
cc/s
Air
Combined Mode
Cal
Sens
Volume
Menu
Change Test Mode
Menu
Esc
<
>
