45
E
3. VAC control automatic vacuum controller

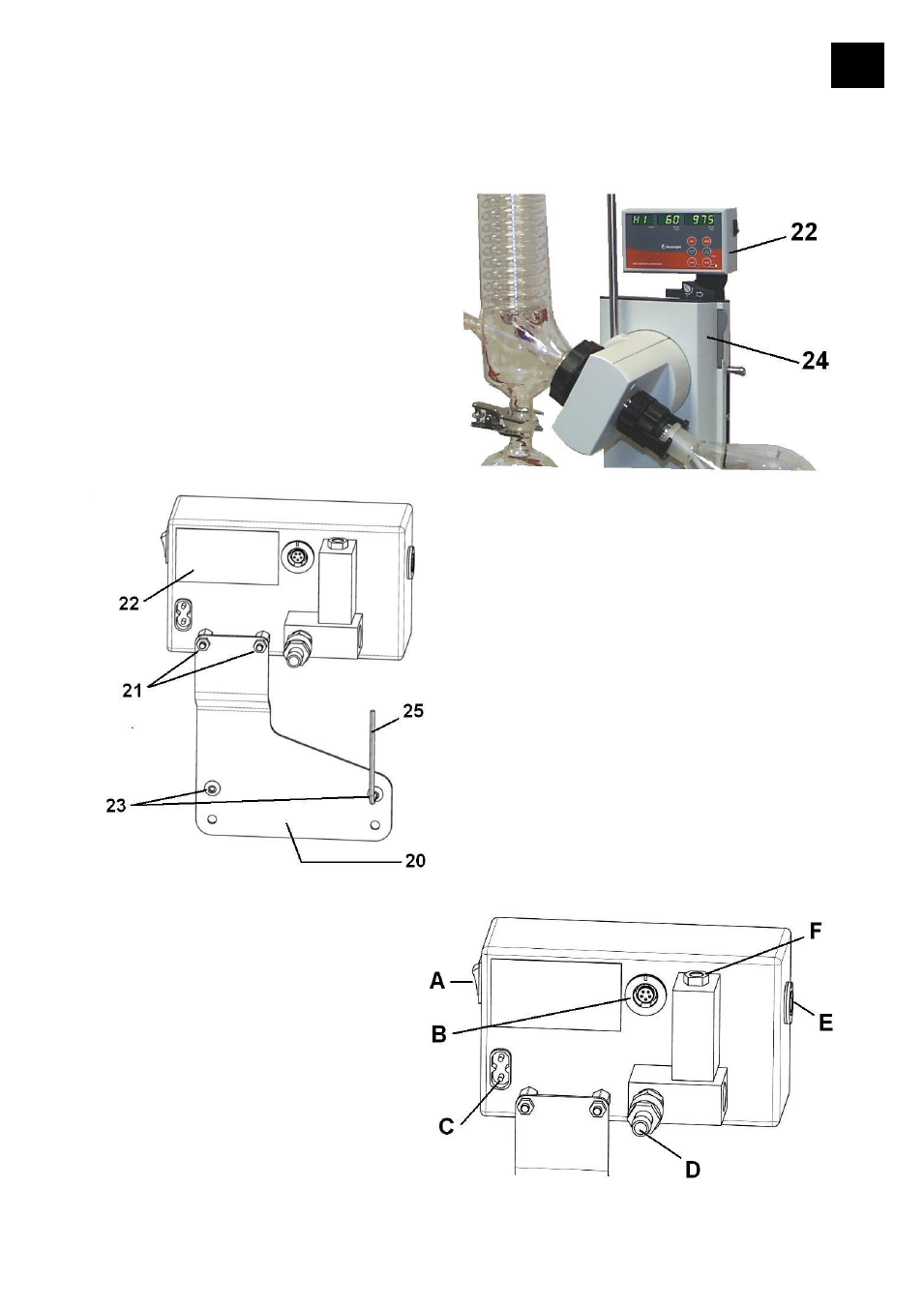

3.1. Installation of VAC control automatic
vacuum controller
The VAC control automatic vacuum controller
is installed on top of the lift column of the
rotary evaporator. Item requires little space,
control panel is accessible at ease.
- refer to picture and install metal
bracket (20) on vacuum controller 22;
use two ea. nuts (21).
- install assembly on the drive head's
(24) rear panel with 4 ea. screws (23)
and hex. pin (25).
3.2. Vacuum fitting
refer to picture
3.3.
Power supply
refer to picture
A
power switch
B vacuum valve
C mains
D vacuum
E vacuum switchbox
F aeration
