2.3. Vacuum supply

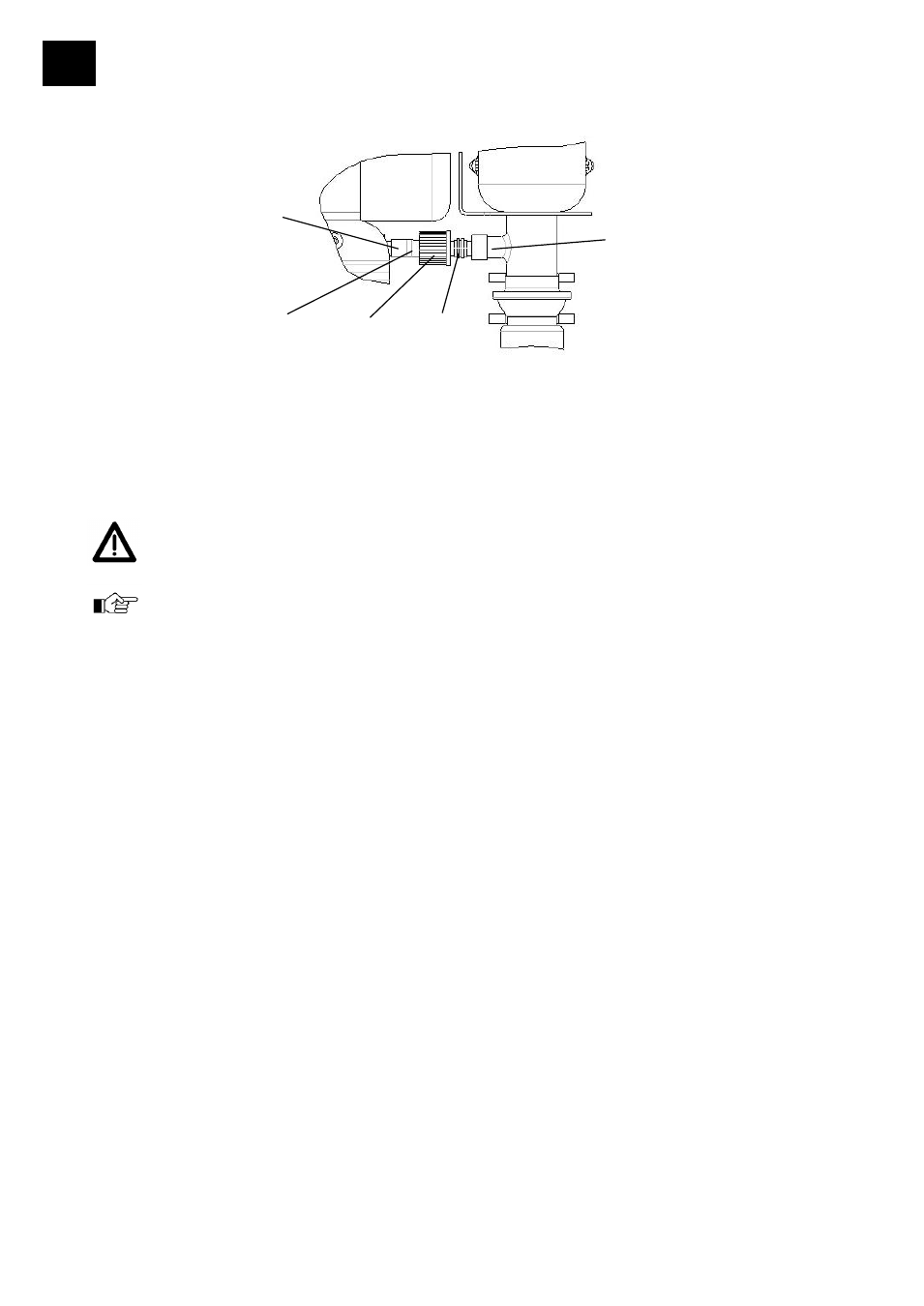

- Vacuum supply is connected with inlet fitting (12)
2.4.
Electric power supply
- Before connecting power supply with mains network check whether:
actual voltage is identical with voltage depicted on data plate (refer to "Safety
Information”); Refer to "General" for more information of plug connectors used.
Caution: ROTAVAC vario tec consists of a pump (24V=) and a power supply module
(mains voltage)
- Connect power cord with wall outlet.
- Connect pump wire with control box (also refer to HeiVap Owner's Manual)
