Operating instructions safety system ces-az-ues, Actuator ces-a-bdn-06, Dimension drawing ces-a-bdn-06 technical data – EUCHNER CES-AZ-UES-xxx (Multicode) User Manual
Page 44: Cylindrical design ∅ 6 mm
Operating Instructions Safety System CES-AZ-UES-...
44
Actuator CES-A-BDN-06
Ì
Cylindrical design
∅ 6 mm

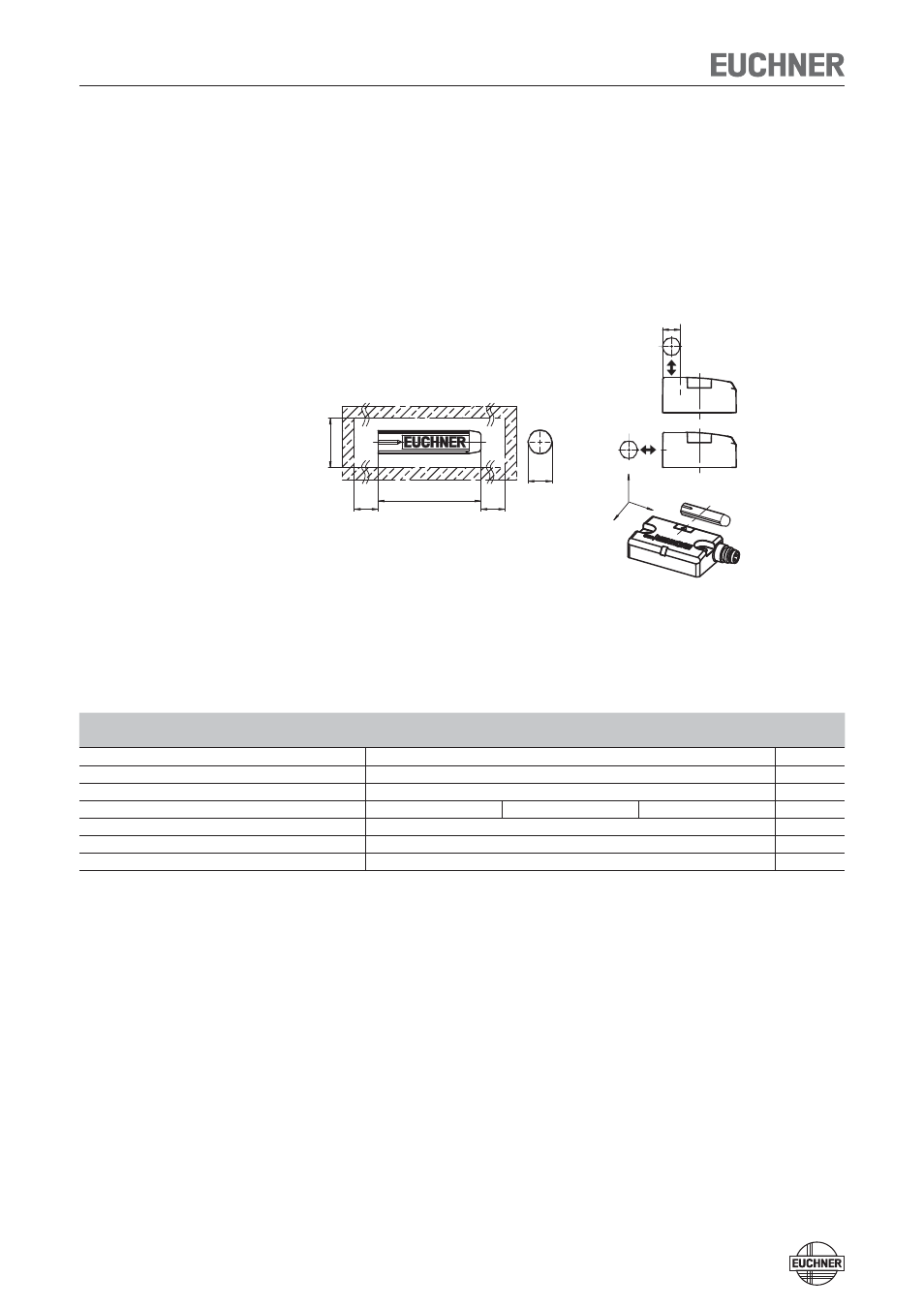

Dimension drawing CES-A-BDN-06
Technical Data
Parameter
Value
Unit
min.
typ.
max.
Housing material
Macromelt PA-based plastic
Dimensions
26 x
∅ 6
mm
Weight
0.005
kg
Ambient temperature
-25
-
+70
°C
Degree of protection
IP67
Installation position
Active face opposite read head
Power supply
Inductive via read head
26
0
+0,5
Ø
30
* min.
30 *
30 *
6,1
0
+0,1
z
y
x
6
Installation options
* metal-free zone
