Operating Instructions Safety System CES-AZ-UES-...

22

Technical Data

Evaluation unit CES-AZ-AES-01B

Ì

Housing for DIN rail mounting, IP 20

Ì

Relay output

Ì

1 read head can be connected

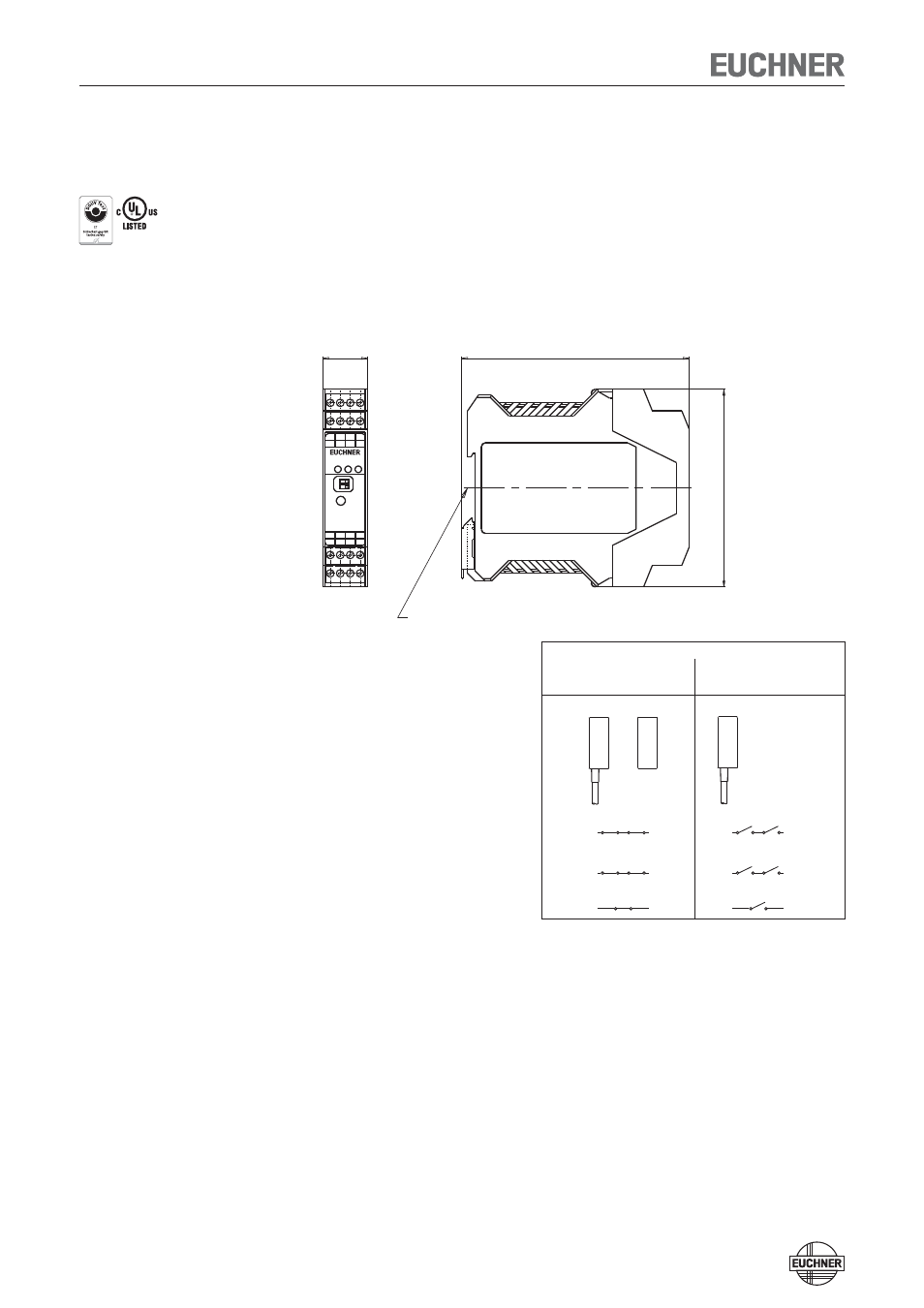

Dimension drawing

Switching characteristics

Ì

2 safety outputs
with 2 NO contacts each
(relay outputs)

Ì

1 door monitoring output
(semiconductor output,
not a safety output)

Approvals

Important:

The plug-in screw terminals are not
included (see page 48 Ordering
information and accessories).

Safety guard

Closed

(actuator detected)

Open

(actuator not in the

operating distance)

Read head

Actuator

Read head

V

O1

13

14

23

24

24

13

14

23

24

24 V

O1

114

22,5

99

Safety Unit

CES-AZ

H11

+UB

H12

0V

SH1

STATE OUT DIA

13 O1 Y1 23

14 DIA Y2 24

RESET

TST

J

S

S
Y

56

Suitable for standard 35 mm DIN rail
