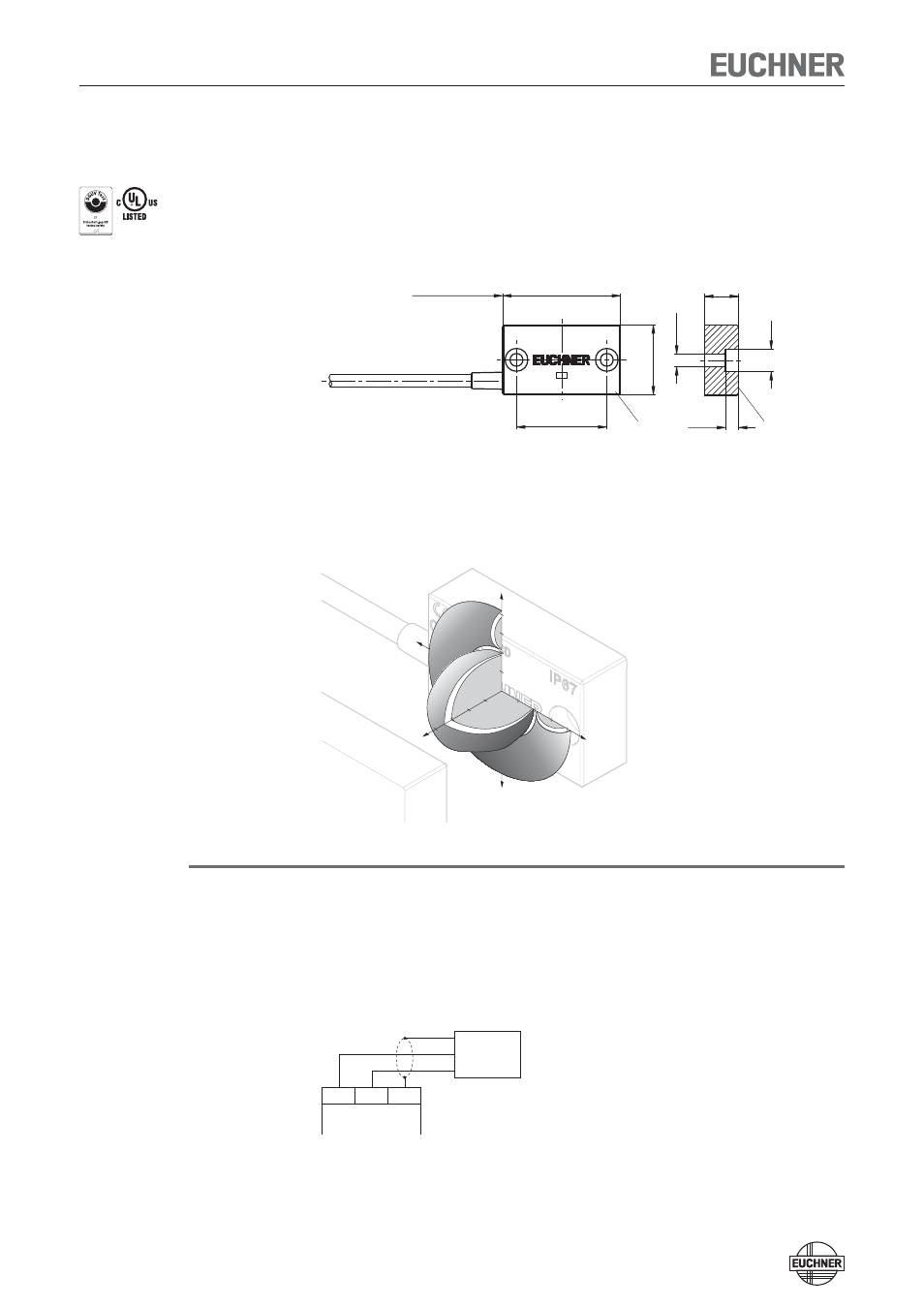

Read head CES-A-LNA-...
Ì
Cube-shaped design 42 x 25 mm
Ì
Hard-wired cable
Dimension drawing
Typical operating distance
With evaluation unit CES-AZ-AES-... and actuator CES-A-BBA
Note
For a side approach direction for the actuator and read head, a minimum distance
of s = 3 mm must be maintained so that the operating distance of the side lobes
is not entered.
Pin assignment
Read head with connection cable
Approvals
CES-A-L XXXXXX
25
8 4,
5
42
32 ±0,1
12
4,6
"l"
2 safety screws M4 x 14
included
Active face Active face
H11 H12 SH1
BN
WH
Screen
Read
head
Evaluation unit
CES-AZ-UES-...
X
20
15
10
5
20
15
10
5
5
10
15
20
Y
Z
