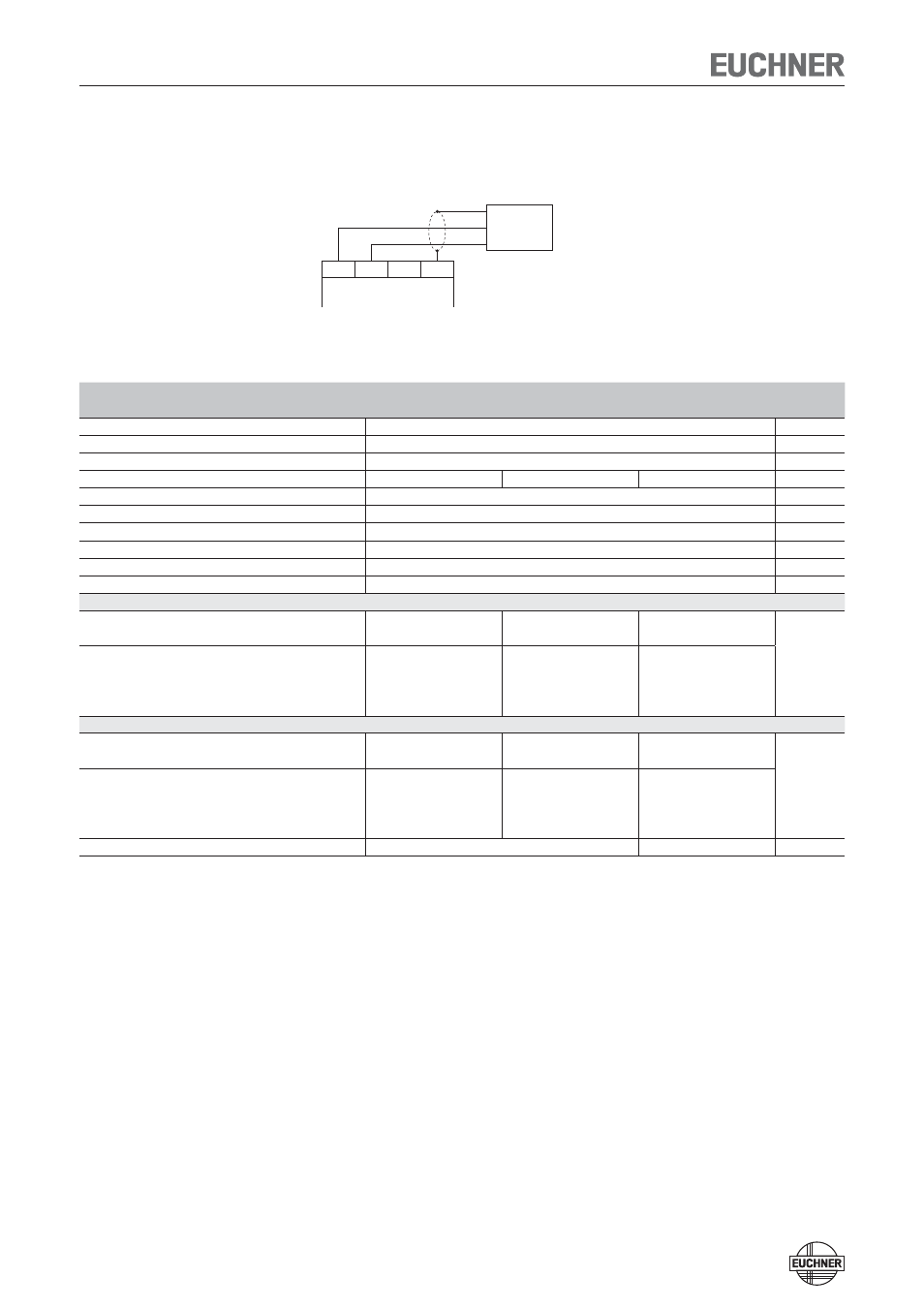

EUCHNER CES-AZ-UES-xxx (Multicode) - Manual (Page 29)

Operating Instructions Safety System CES-AZ-UES-...
29
Pin assignment
Read head with connection cable
Technical Data
Parameter Value Unit
min. typ. max.
Housing material Reinforced thermoplastic (PBT), fully encapsulated
Dimensions 42 x 25 x 12 mm
Weight (without connection cable) 0.025 kg
Ambient temperature -25 - +70 °C
Degree of protection IP67
Installation position Any
Method of operation Inductive
Power supply Via evaluation unit
Connection type M8 plug connector, 3-pin or connection cable
LED display White, valid actuator detected
In combination with actuator CES-A-BBN-106600
Assured switch-off distance S
ar
in x/z direction - - 50
mm
in y direction - - 80
Operating distance for center offset m = 0 1)
- Switch-on distance - 15 -
- Assured switch-on distance S
ao
10 - -
- Switching hysteresis 1 4 -
In combination with actuator CES-A-BDN-06-104730
Assured switch-off distance S
ar
in x/z direction - - 50
mm
in y direction - - 80
Operating distance for center offset m = 0 1)
- Switch-on distance - 19 -
- Assured switch-on distance S
ao
14 - -
- Switching hysteresis - 4 -
Conductor length See ordering table 25 m
1) These values apply for the surface installation of the read head and the actuator.
H11 H12 SH1
BN
WH
1
4
3
Screen
Read head
Evaluation unit
CES-AZ-AES-...
