Operating Instructions Safety System CES-AZ-UES-...
31

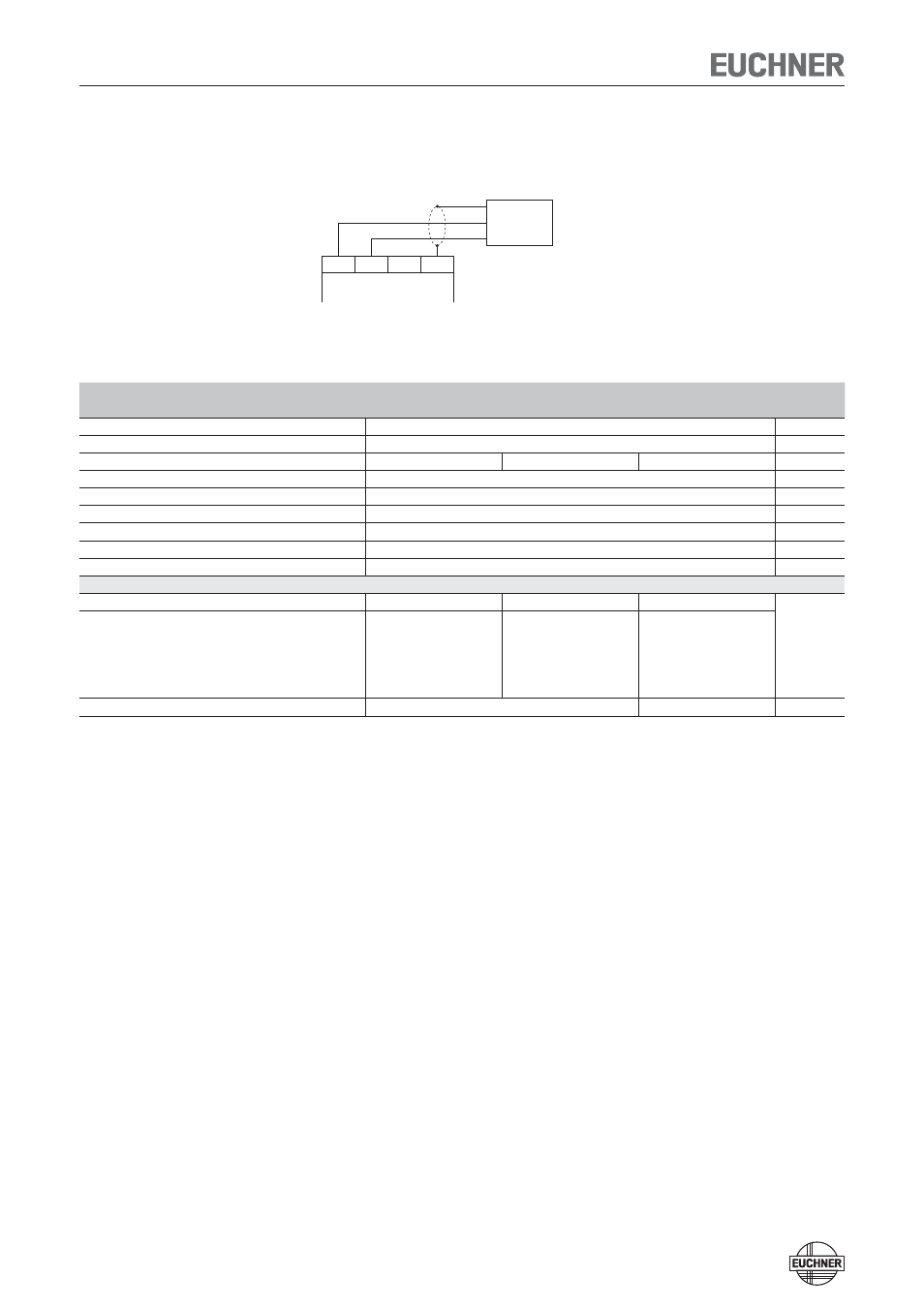

Pin assignment
Read head with connection cable
Technical Data
Parameter Value Unit
min. typ. max.
Housing material Reinforced thermoplastic, fully encapsulated
Weight (without connection cable) 0.02 kg
Ambient temperature -25 - +70 °C
Degree of protection IP67
Installation position Any
Method of operation Inductive
Power supply Via evaluation unit
Connection type M5 plug connector, 3-pin
LED display White, valid actuator detected
In combination with actuator CES-A-BSP-104970
Assured switch-off distance S
ar
- - 45
mm
Operating distance for center offset m = 0 1)
with vertical approach direction (x direction)
- Switch-on distance - 20 -
- Assured switch-on distance S
ao
10 - -
- Switching hysteresis 1 4 -
Conductor length See ordering table 25 m
1) These values apply for the installation of the read head and the actuator in an aluminum profile 45 x 45 mm.
H11 H12 SH1
BN
WH
1
3
4
Screen
Read head
CES-A-LSP
Evaluation unit
CES-AZ-AES-...
