Operating Instructions Safety System CES-AZ-UES-...
26
Evaluation unit CES-AZ-AES-04B
Ì
Housing for DIN rail mounting, IP 20
Ì
Relay output
Ì
4 read heads can be connected

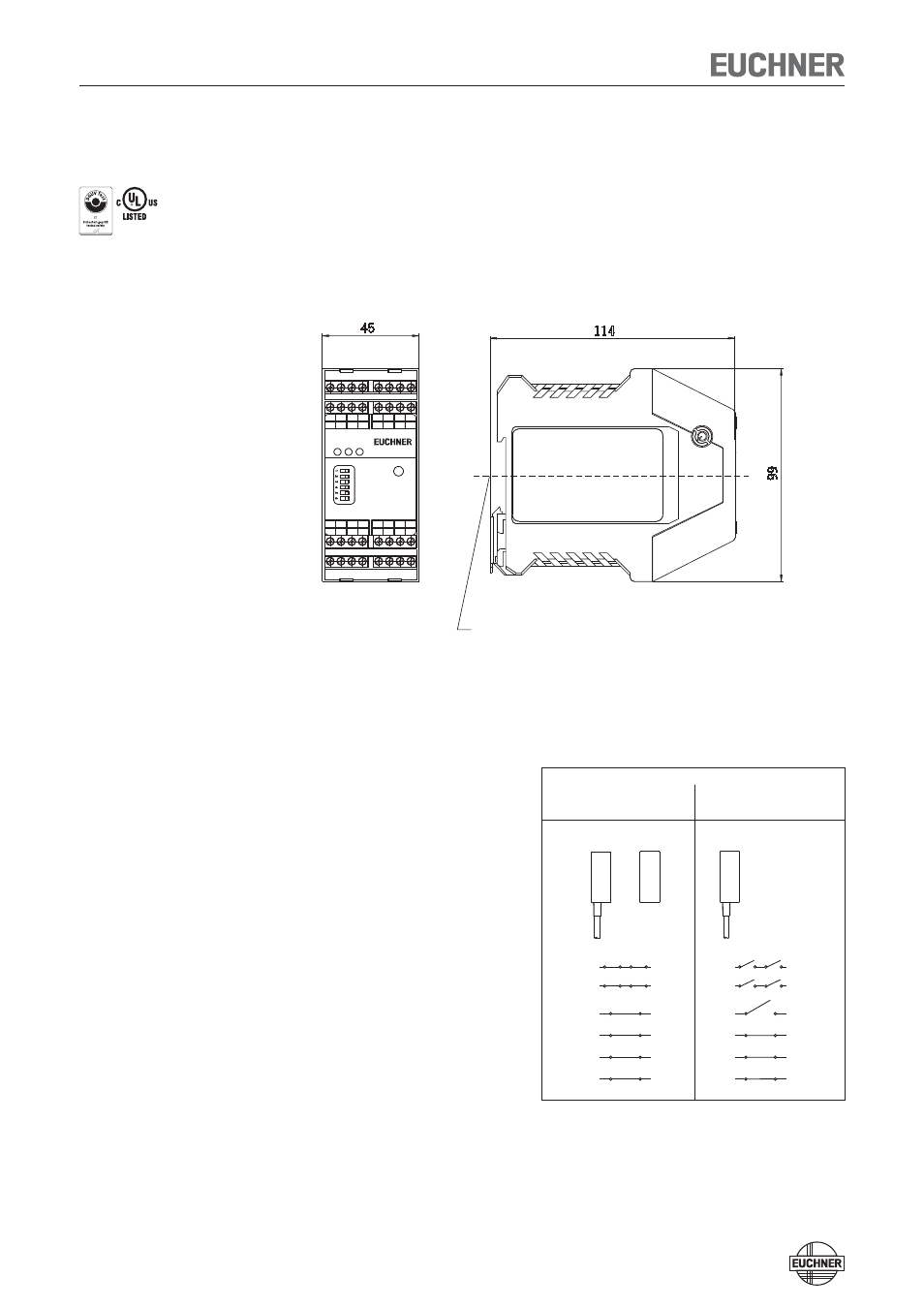

Dimension drawing
Switching characteristics
Ì
2 safety outputs
with 2 NO contacts each
(relay outputs)
Ì
4 door monitoring outputs
(semiconductor outputs,
not safety outputs)
Approvals
Important:
The plug-in screw terminals are not
included (see page 48 Ordering
information and accessories).
45
99
114
24 Y2
O2
Y1
O1
23
STATE OUT DIA
+UB
0V
SH1
SH2
H12
H22
H11
H21
14 DIA
J2
TST
J1
13
S
CES - AZ
H1
H2
H3
H4
S
Y
Safety Unit
RESET
H31
H41
H32
H42
SH3
SH4
O3 O4
Suitable for 35-mm DIN rail according to EN 60715
Safety guard
Closed
(all actuators detected)
Open
(e.g. actuator 1 not in the
operating distance)
Read head 1 Actuator 1 Read head 1
13 14
23 24
24 V O 1
13 14
23 24
24 V O 1
24 V O 2 24 V O 2
24 V O 3 24 V O 3
24 V O 4 24 V O 4
