Operating Instructions Safety System MGB-L..B-PNA-... (PROFINET)
12
1 2 3 4 5
Key:
1
Door handle
2 Setscrew
3 Cover
4 Actuation axis, length 118 mm (in-
cluded)
Alternatively:
length 250 mm (order No. 110 976)
5 Protective sleeve
Note:
Depending on the version, a mounting
plate can be included. See enclosed data
sheet.
1
2
3
4
Key:
1
Door handle
2 Locking pins for housing cover
and handle adjustment
3 Lockout mechanism
4 Bolt tongue
Note:
Depending on the version, a mounting
plate can be included. See enclosed
data sheet.
Evaluation module MGB-L.-

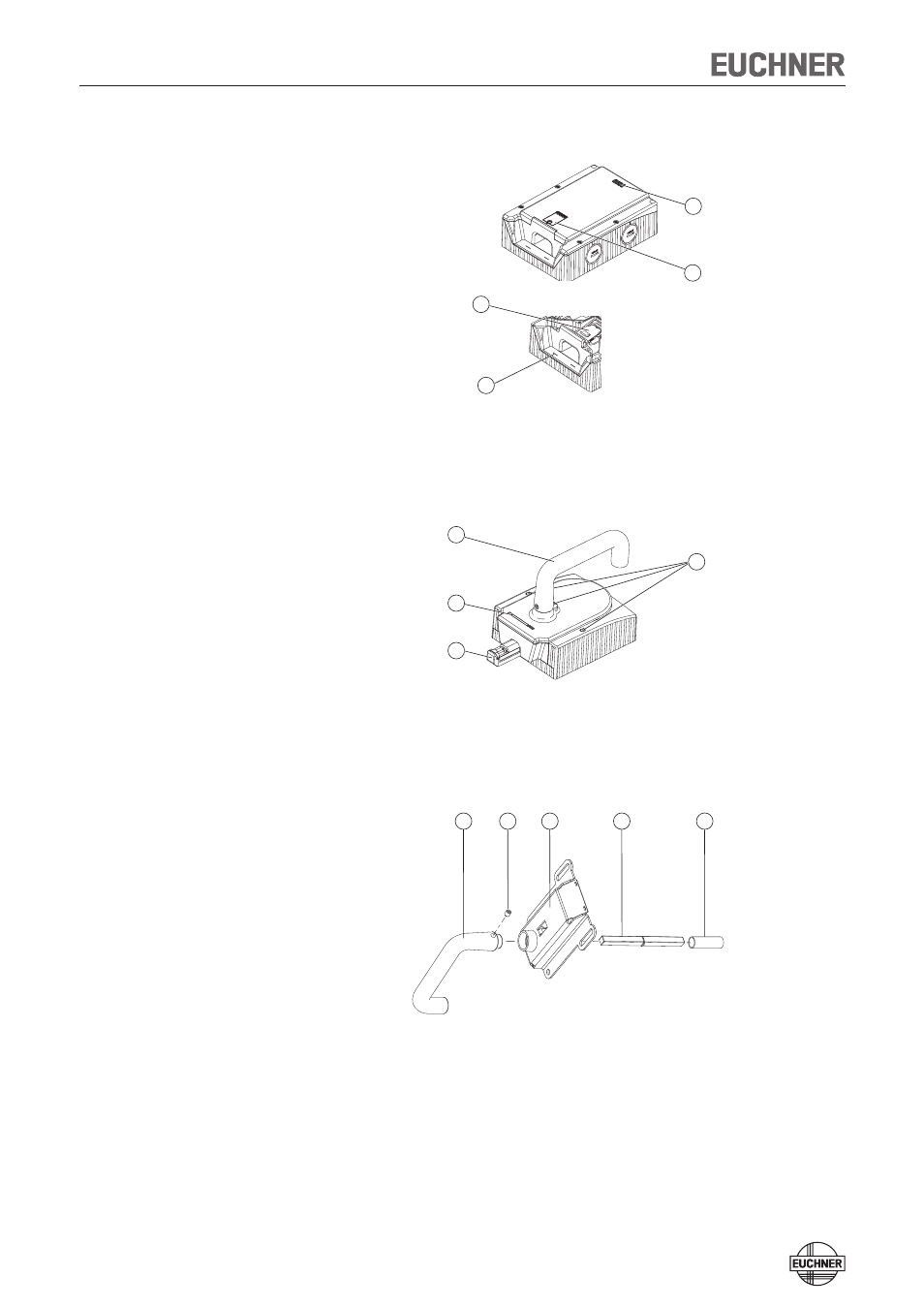

Figure 3: Evaluation module MGB-L.-
Handle module MGB-H-...
Figure 4: Handle module MGB-H-...
Escape release MGB-E-... (optional)
Figure 5: Escape release MGB-E-...
Dimension drawing
See enclosed data sheet
2
1
3
4
Key:
1
LED indicator
2 Cover for mechanical release
3 Locking arm (only version with
guard locking)
4 Auxiliary marking for max. permit-
ted mounting distance
Note:
Depending on the version, a mounting
plate can be included. See enclosed
data sheet.
