Operating Instructions Safety System MGB-L..B-PNA-... (PROFINET)
11
System overview

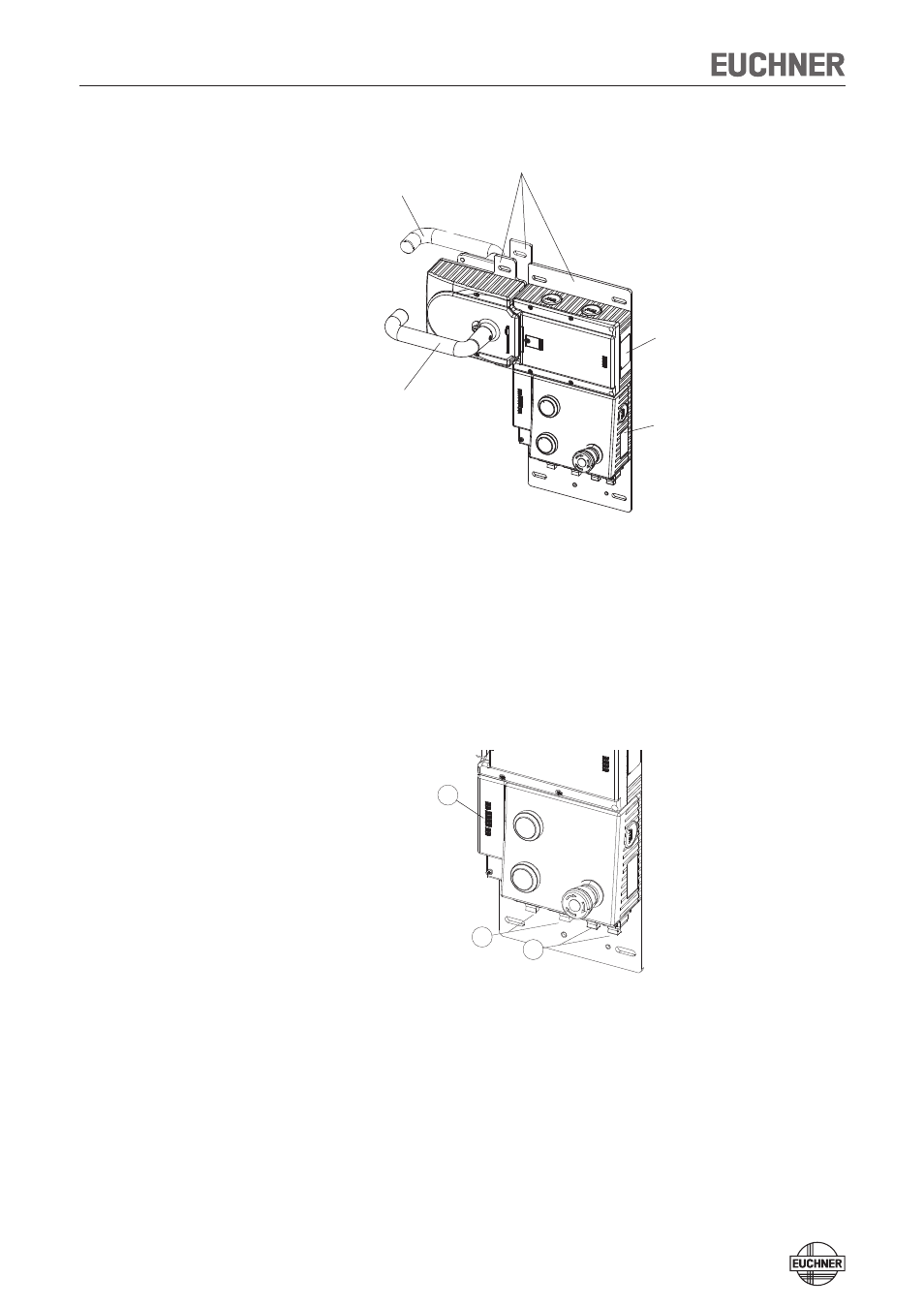

Figure 1: Components at a glance (sample configuration)
Note: MGB-PN systems are completely factory configured. The configura-
tion must not be changed subsequently. The illustrations in this section can
deviate from your system and serve only as examples. The configuration
of your MGB system can be found in the data sheet included with every
MGB system.
Bus module MGB-B-...-PN
Figure 2: Bus module MGB-B-...-PN (configuration example)
Key:
1
LED indicator
2 Power supply
3 PROFINET connection
Note:
Depending on the version, additional
controls and indicators may be integrated
into the cover and a mounting plate can
be included. The type of connection can
vary depending on the version. See en-
closed data sheet.
1
2
3
Mounting plate
Escape release (optional)
(MGB-E...)
Handle module
(MGB-H...)
Evaluation module
(MGB-L...)
Bus module
(Profinet)
(MGB-B...)
