ERICO ERITECH ERICORE Upper Termination User Manual
Page 9
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
9
www.erico.com

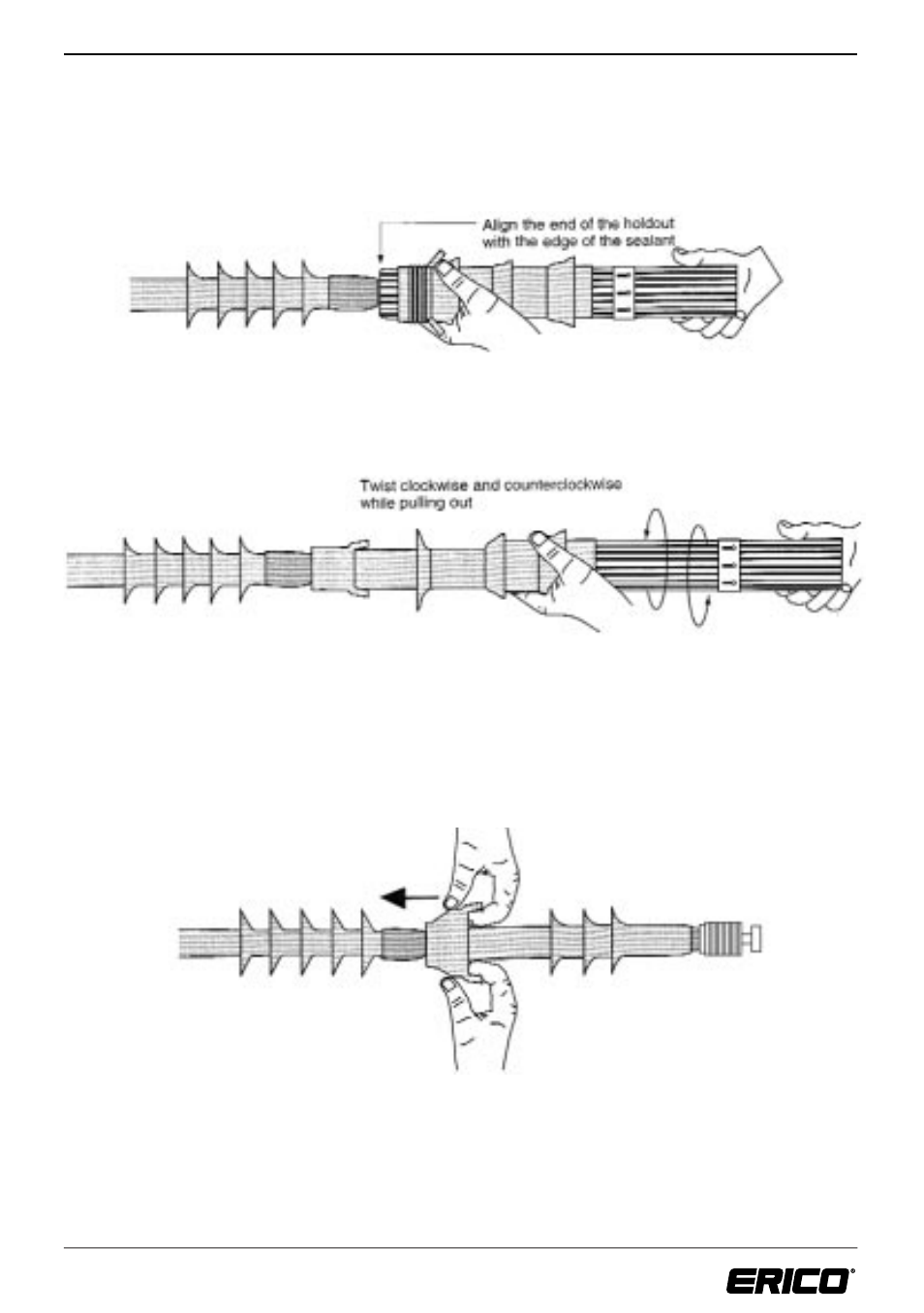

21. Installing the termination (continued).
Slide the three-shedded termination over the cable until it meets the leading edge of the
sealant strip as shown. Twist the termination and slowly push it to the end of the holdout.
Slide the termination completely off the holdout using a twisting and pulling motion as shown.
Using the pull tabs, pull the flip-back portion away from the main termination, at the same
time working the first two fingers of each hand between the flip-back and main termination.
Pull the stretched out flip-back over the sealant.
Figure 3
