Terminating the ericore upper end, Instructions for ericore downconductor – ERICO ERITECH ERICORE Upper Termination User Manual
Page 2
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
2
www.erico.com
Terminating the ERICORE Upper End
Instructions for ERICORE Downconductor
Tools required for terminating upper end of ERICORE
1. Sharp Knife
2. Tape Measure
3. 2 x 375mm (15in.) Shifting Spanner / Wrench
4. PVC Electrical Tape
5. Roll Spring - supplied with termination kit
6. Insulation Cutting Tool - supplied with termination kit
The Upper Termination Kit consists of:
1 x Coldshrink Tube (red)
1 x Vital Warning Label
1 x Mastic Tape
1 x ERICORE Coupling
1 x Structure Bonding Braid
1 x Instructions
(4 pieces when dismantled)
1 x Insulation Cutting Tool
1 x Crimp Lug
1 x Silicone Tape - 1.3m (93in.)
1 x Semi Conductive Tape
1 x Roll Clip

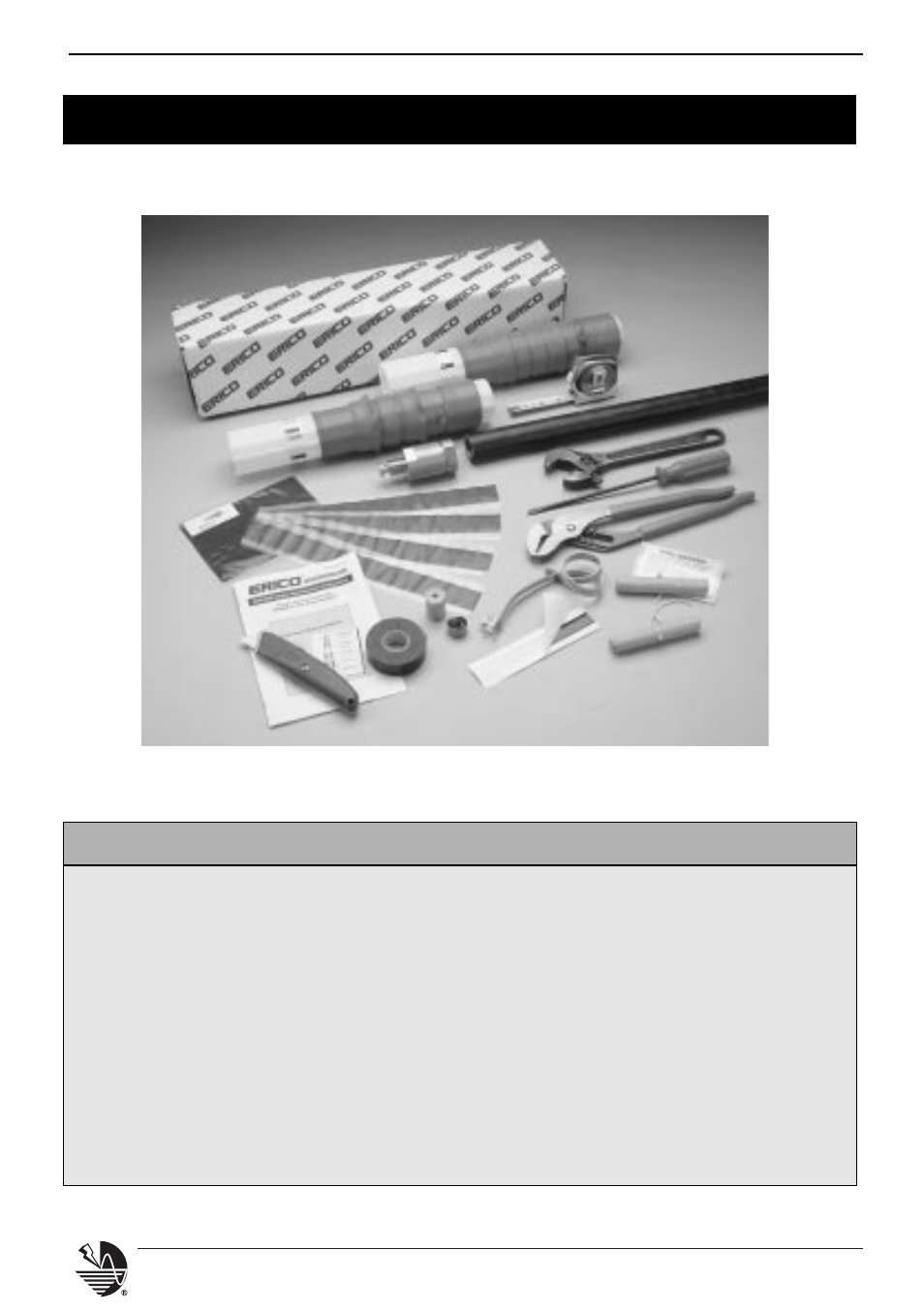

Photo 1: Contents of upper termination kit and the tools required to complete the termination procedure.
