Installation, operation and maintenance manual 12, If required, connect the 6mm – ERICO ERITECH ERICORE Upper Termination User Manual
Page 12
INSTALLATION, OPERATION AND MAINTENANCE MANUAL
12
www.erico.com

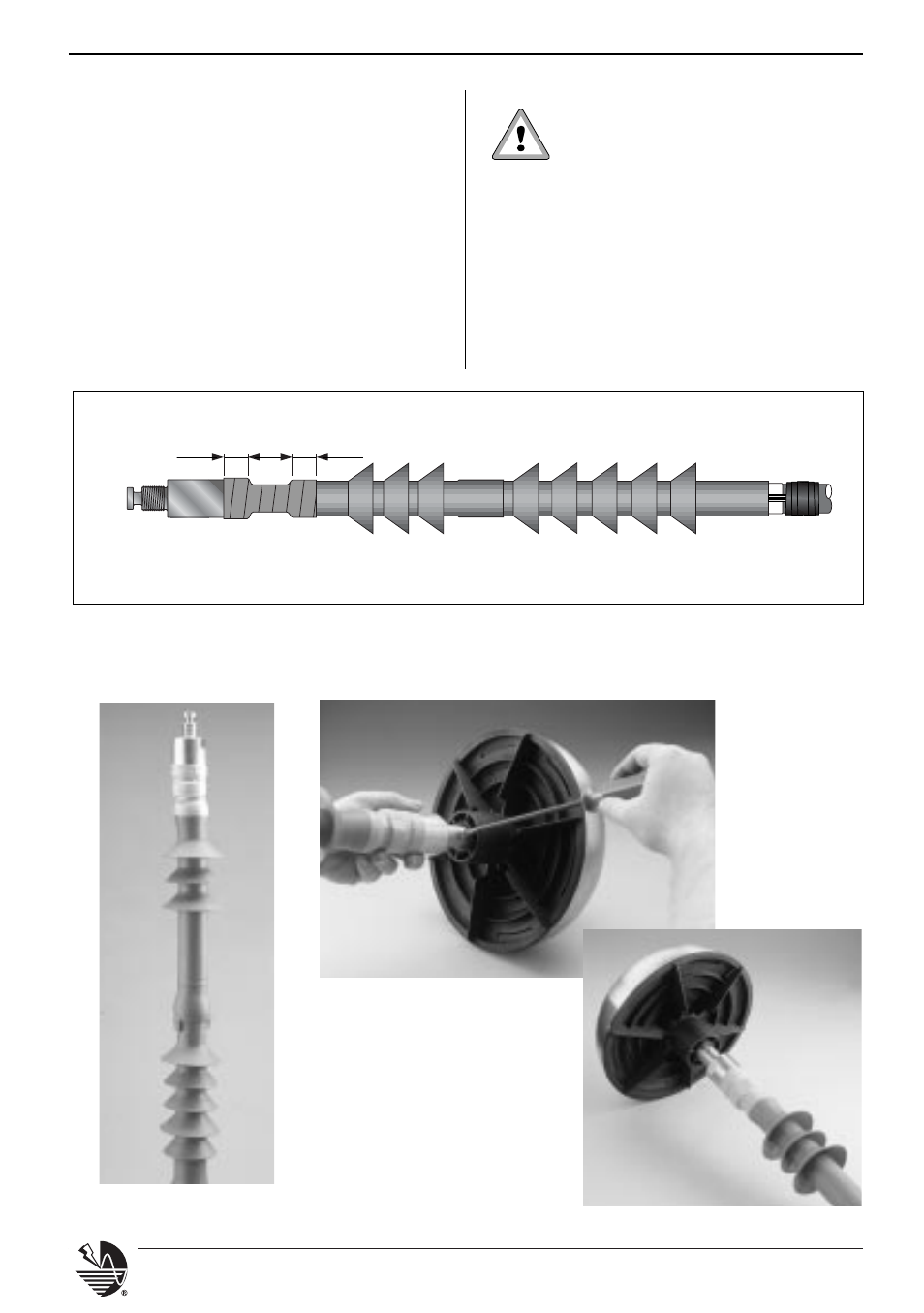

Photo 10: Once the DYNASPHERE
has been fitted to the termination
coupling, ensure the locking screw
is tightened securely.
30mm
(1
1
/
4
in.)
40mm
(1
1
/
2
in.)
20mm
(
3
/
4
in.)
DOUBLE WRAP SILICON TAPE
HALF LAPPING OVER ENTIRE LENGTH - ENSURE TAPE COVERS JOIN IN COUPLING
Figure 7
26. If required, connect the 6mm
2
(8AWG)
structure bonding cable as detailed in the
ERITECH System 3000 Installation, Operation
and Maintenance Manual. After bonding the
cable, ensure that the connection is
waterproof and resealed if required.
27. Place the Vital Warning Label in a
prominent position at the base of the mast,
or beside the downconductor at eye level, if
the installation is in an area where it is
possible for persons to gain access.
These termination procedures
should be strictly adhered to
since an incorrect termination
will result in failure of the system.
Photo 9: Completed termination.
HB-HBCR-170
