Practical guide to electrical grounding – ERICO Practical Guide to Electrical Grounding User Manual
Page 70
Practical Guide to Electrical Grounding
62
CADWELD Connection
Ground Bar To Ground Rod
Type CR
Ground Wire From
Transformer
CADWELD Terminal
TYPE GL With NEMA Lug
Grade
1/4"x4"x36"
Ground Bus
Copper Bonded Ground Rods

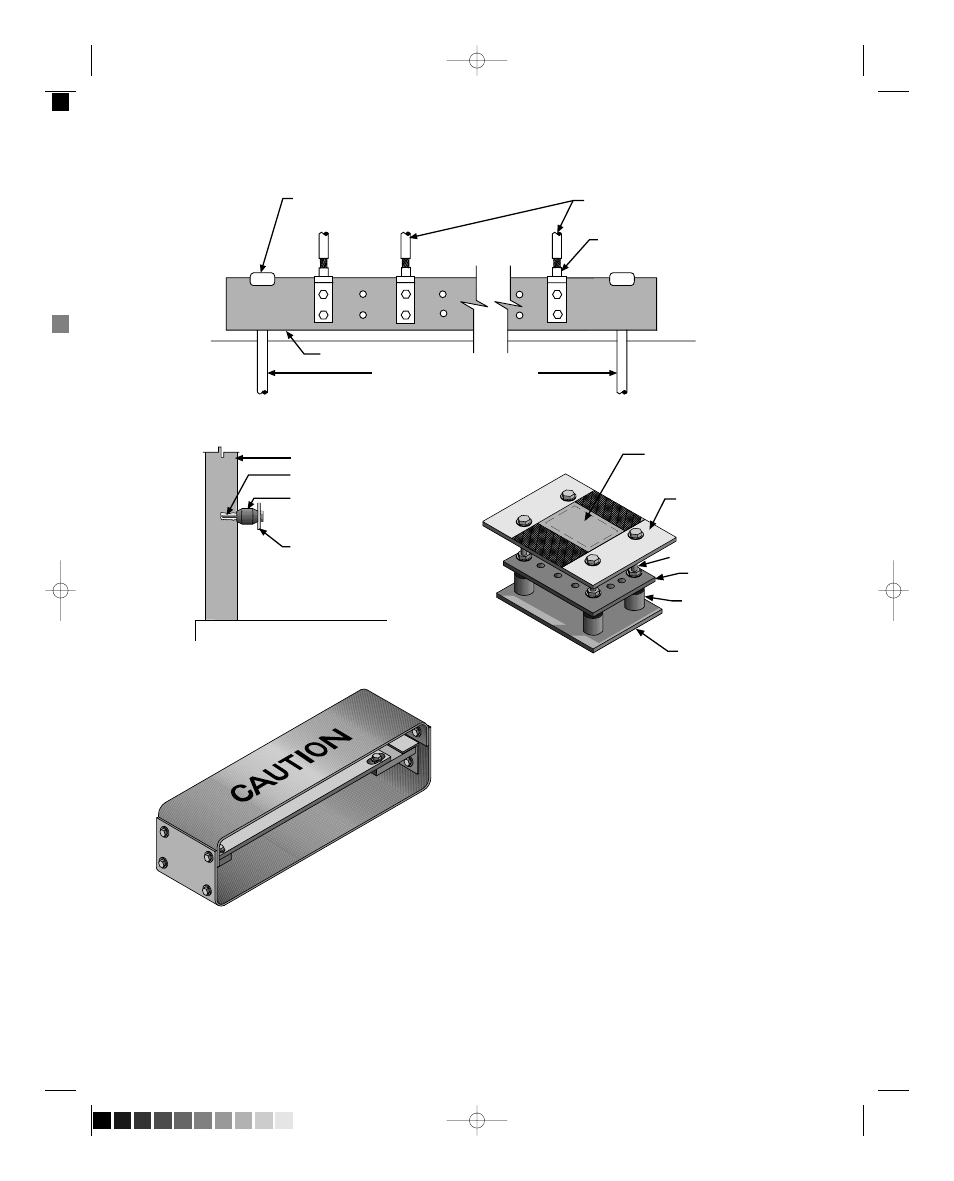

Transformer Ground Bus Detail
Fig. 3-31
Static Ground Bus Detail
Fig. 3-32
Fig. 3-33
Fig. 3-34
U Wall
Anchor @ 2'-0" Centers
Stand-off Insulator
2" x 1/4" Copper Static Ground
Bus Field Drilled
Custom Lettering
To Your Specifications
Plexiglass Cover
Nylon Bolts
Copper Plate
Insulator
Steel Mounting Plate
Grounding Book 4/14/99 10/5/99 6:01 PM Page 62 (Black plate)
