Chapter 6: Special Grounding Situations

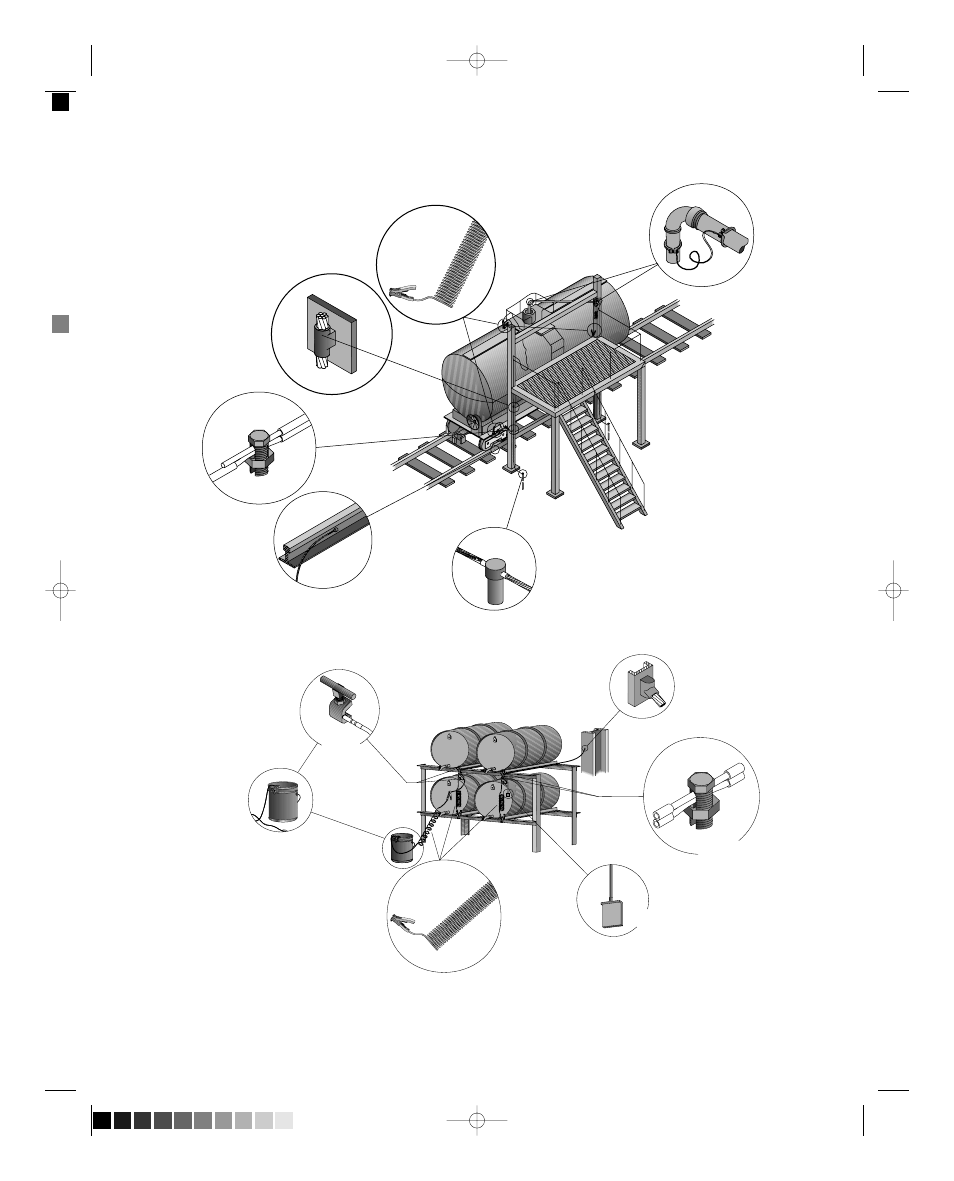

Drum storage rack bonding.
Fig. 6-34
Pipe Swivel Joint
B2616Axx Pipe Clamps
With A806A3F5 Cable
B2614A Spring Clamp
With A822SB111C20
Coiled Cable
CADWELD
Type VV
Weld
B2600E2C
CADWELD
Type ST
Weld
CADWELD
Type GT
Weld
Rail Siding
Typical Parts Needed
For Static Grounding
Cable
A822SA111C5
B2610A With
B2615C
B2600D1
B2600E2C
Drum Storage
Typical Parts Needed
For Static Grounding
CADWELD
Type VS
Tank car bonding at siding.
Fig. 6-33
