Sheet4, Csbstu – ERICO CSBSTU - Sway Brace Fitting, Standard Universal Sway Brace User Manual
Page 4
Sway Braces are intended to be installed in accordance with NFPA®-13 and the manufacturer's
assembly and instructions.
CSBSTU is a Sway Brace Fitting. It is intended to be combined with a CADDY®
brand Structural Attachment Fitting and "Bracing Pipe" to form a complete bracing assembly.

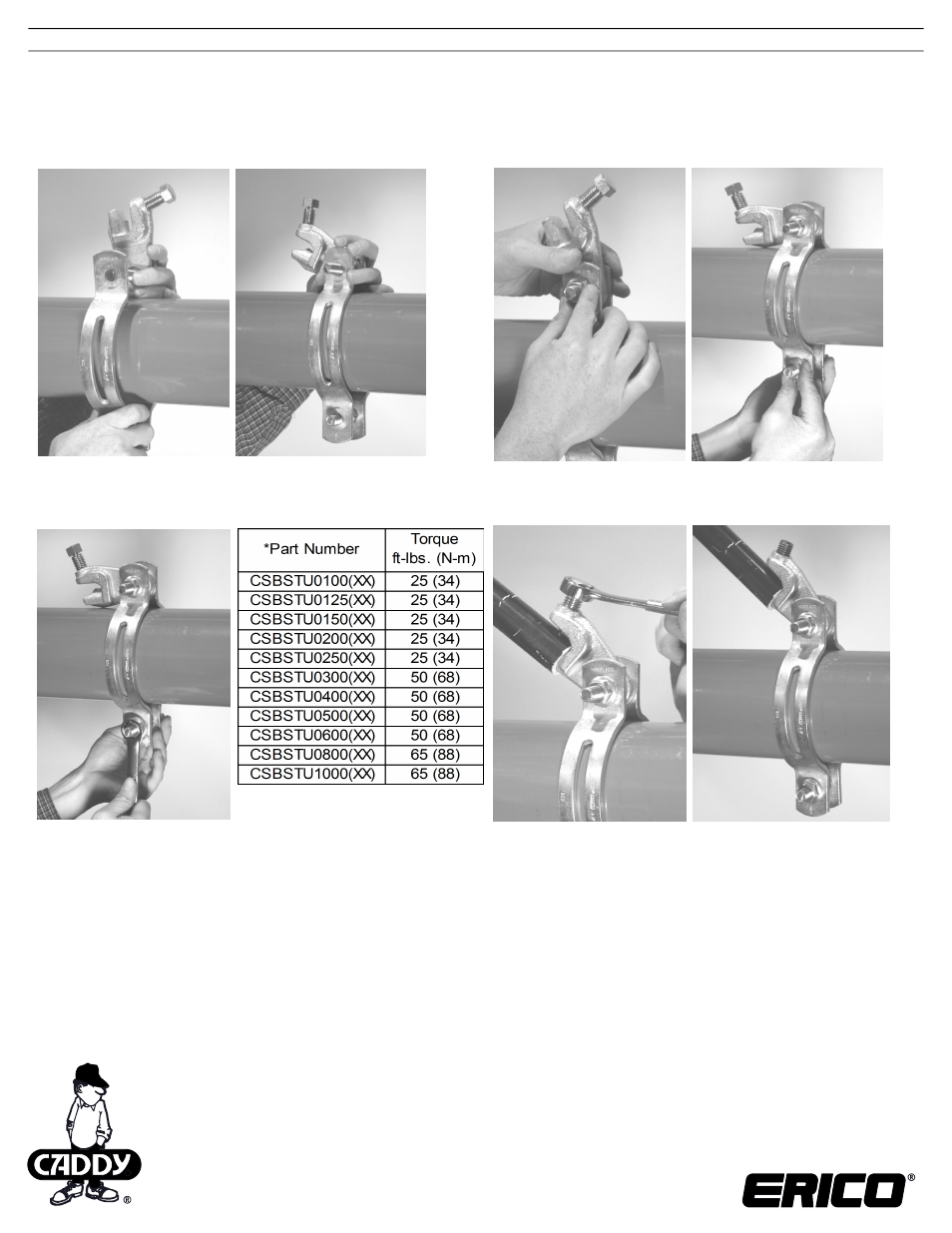

Position stamped components around service pipe
Finger tighten nuts and rotate assembly to desired
orientation
Tighten top and bottom nuts to proper
torque, reference torque chart.
*(XX) Finish Specifier
Insert brace into clamp as far as possible.
Tighten set screw until head snaps off
#1
#2
#3
#4
TECHNICAL SUPPORT:
www.erico.com
CFS403_J
INSTRUCTION SHEET
4 OF 17
© 2009, 2011, 2012, 2013, 2014 ERICO
International Corporation.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
CSBSTU
Standard Universal Sway Brace or Restraint Device
Sway Brace Fitting
