ERICO CSBSTU - Sway Brace Fitting, Standard Universal Sway Brace - Manual (Page 3)

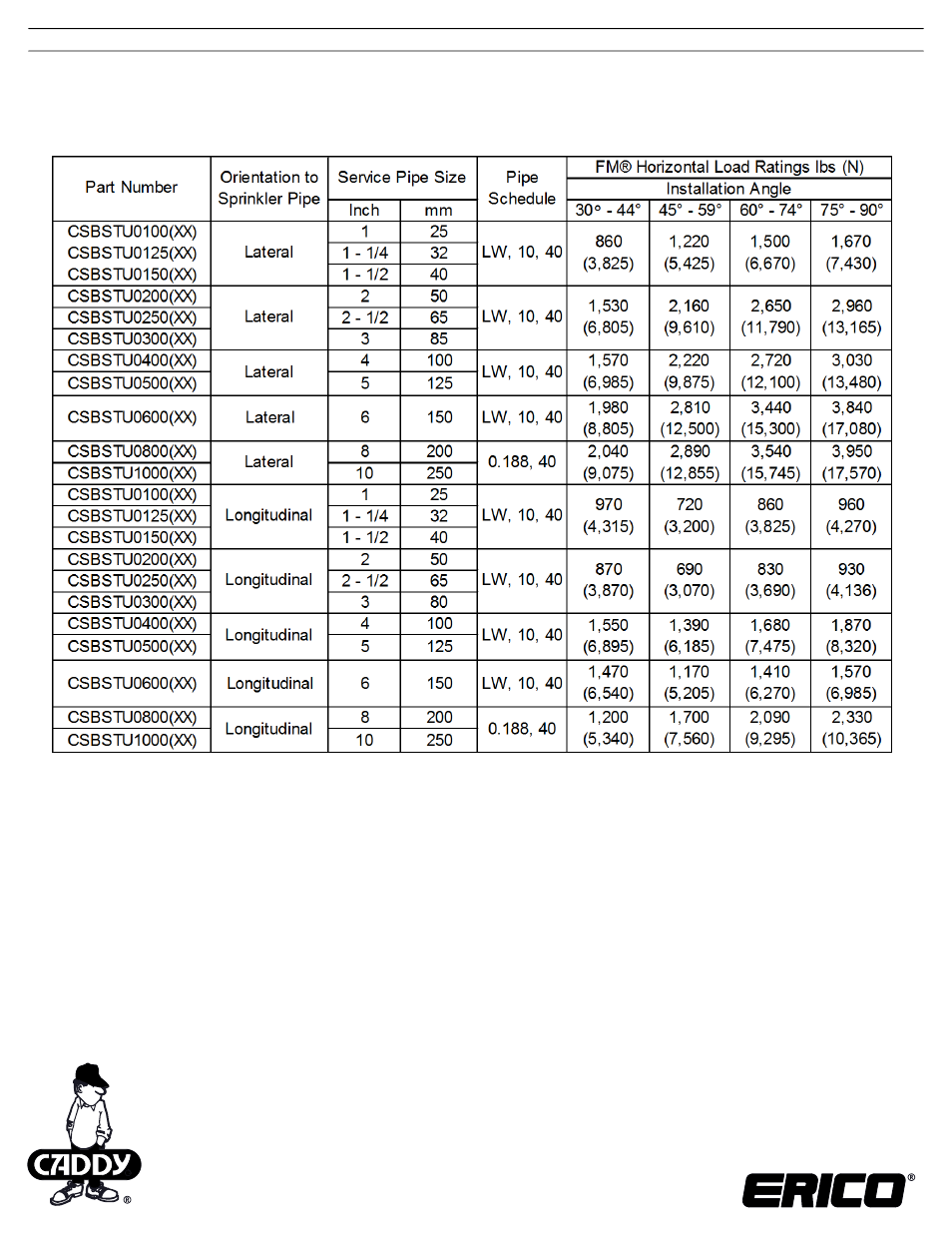

Notes:
A) FM approved when used with 1", 1-1/4" or 2" (DN25, DN32, DN40, DN50) NPS Schedule 40, GB/T 3091, EN 10255
(Heavy), AS 1074 (Heavy) or JIS G3454 brace pipe.
B) Load ratings for Schedule 40 above may also be applied to AS 1074 (Heavy), GB/T 3091, EN 10255 (Heavy) and JIS
G3454 pipe.
C) Load ratings for Schedule 40 above may also be applied to AS 1074 (Meduim), GB/T 3091, EN 10255 (Medium or
Heavy), JIS G3452, FM approved Thinwall, and Schedule 40 pipes unless otherwise indicated.
D) Load ratings for LW above refers to FM Approved Lightwall Pipe, commonly referred to as "Schedule 7". These
ratings may also be applied to A1074 Lightwall, EN 10255 L, EN 10220, and GB/T 8163 pipe unless otherwise
specified.
E) Load ratings for "0.188 wall" above may be applied to any thicker walled pipe unless otherwise specified.
TECHNICAL SUPPORT:
www.erico.com CFS403_J
INSTRUCTION SHEET
3 OF 17
© 2009, 2011, 2012, 2013, 2014 ERICO
International Corporation.
CADDY, CADWELD, CRITEC, ERICO, ERIFLEX, ERITECH, and LENTON are registered trademarks of ERICO International Corporation.
CSBSTU
Standard Universal Sway Brace or Restraint Device
Sway Brace Fitting
