Installation
5
Electrical Connection
Ovens are supplied for operation on 208 volt or
220Ć240 volt installation. The thermostat, indicator
light and related switches are interconnected
through one power source supplied to the oven.
Before making any connection to this oven, check
the rating plate attached to the bodyback to asĆ
sure that the voltage, phase and KW rating are
compatible with the electrical supply. See diaĆ
gram.
All ovens, when installed, must be connected and
electrically grounded in accordance with local
codes, or in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70-Latest
Edition and/or Canadian Electric Code CSA
C22.1 as applicable.
Wiring diagrams are located on the bodyback.
The supply conduit enters through the rear of the
oven and electrical connection is made to the terĆ
minal block secured to the panel at the back of the
control compartment. Electrical connection sizes
for a double 1400 oven are shown in Electrical
Connection AWG" column of the Electrical SpecifiĆ
cations found on page 2 of this manual. Wiring is
sized for 75_C copper wire at 125% of rated input.
Reference is from the National Electric Code ANSI/
NFPA 70Ć Latest Edition.

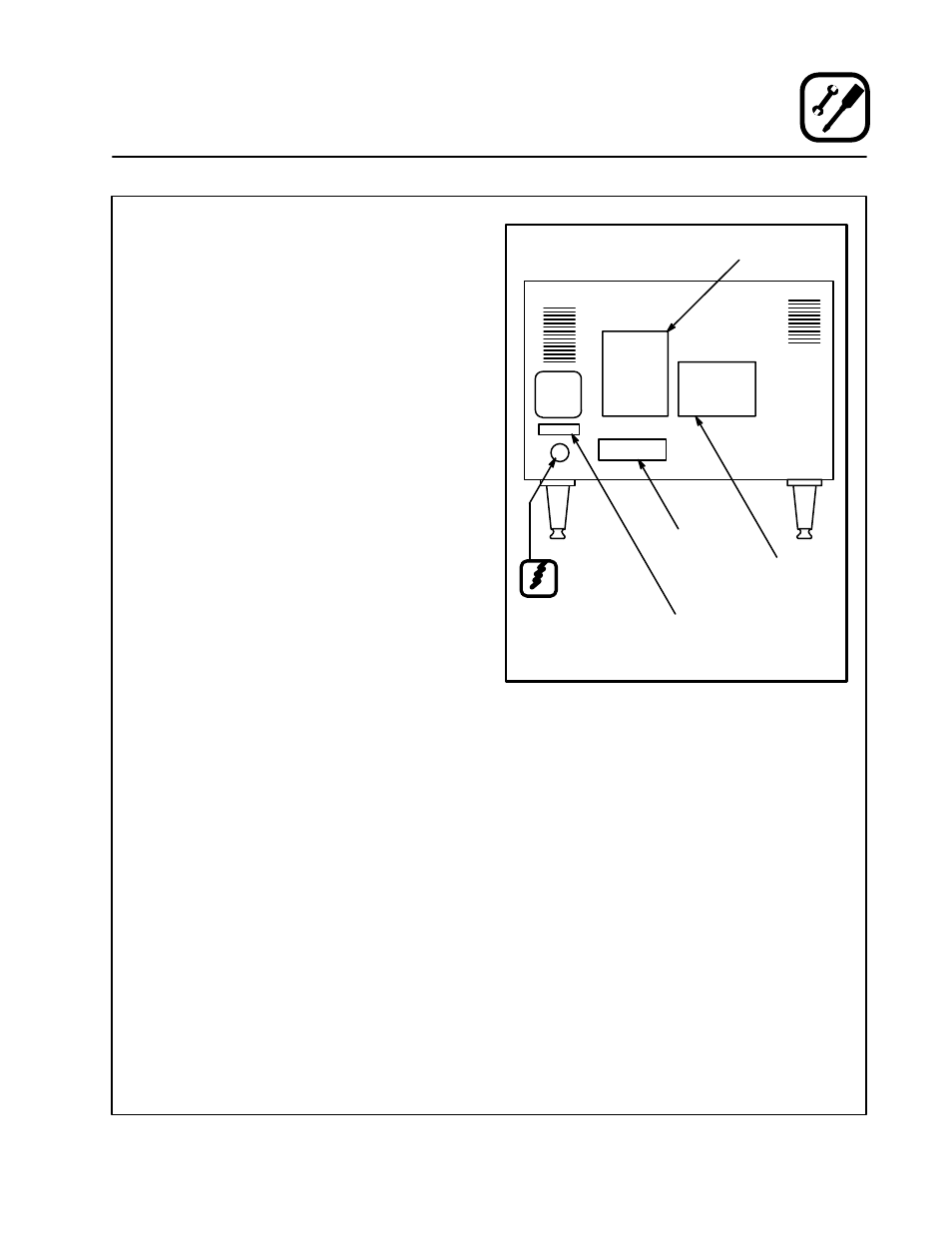

Wiring Label
Wiring
Schematic
Rating
Plate
Installation Instructions
Do not install closer than
2 inches to any side or rear wall"
Figure 2
