Operation
9
Electro/Mechanical Thermostat and Timer
TIMER
LIGHT OFF
OVEN AT
TEMPERATURE OVEN
TEMPERATURE
C F
1
2
3
4

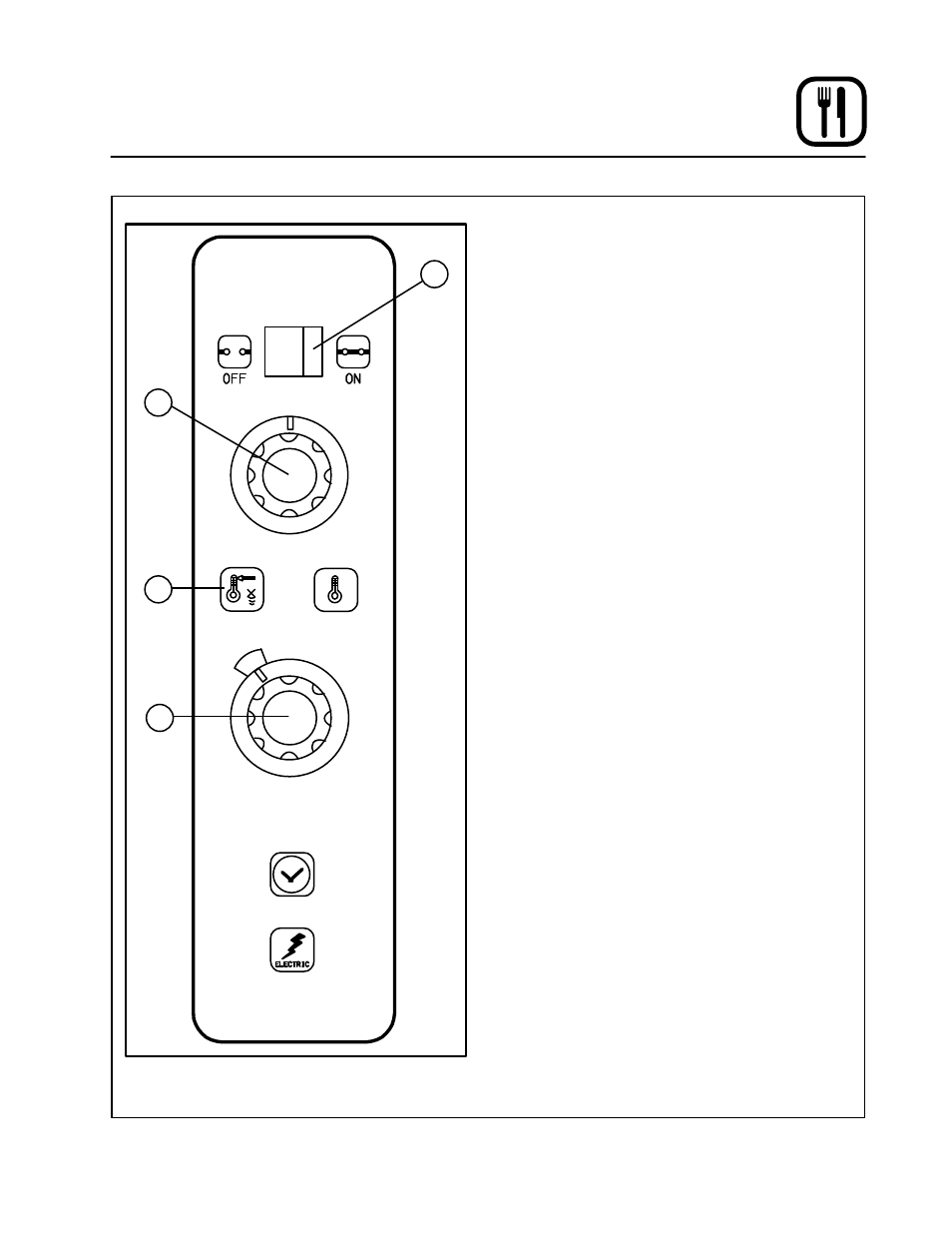

Figure 7
COMPONENT DESCRIPTION
1. POWER SWITCH - Controls the power to the
oven. When switched to OVEN ON, the oven
is operating in the normal heating mode.
OVEN OFF, turns the oven off.
2. OVEN THERMOSTAT - Controls the oven
temperature at desired settings.
3. LIGHT OFF OVEN INDICATOR LIGHT -
When lighted indicates heaters are in operaĆ
tion. When the light goes out, the oven has
reached set operating temperature.
4. TIMER - Activates an electric buzzer which,
upon expiration of time, will sound to remind
the operator to remove the product.
OPERATION
1. Depress the right hand side of the POWER
SWITCH (1) to turn the oven ON. The elements
will come on, this is indicated by the INDICAĆ
TOR LIGHT (3).
2. Set the THERMOSTAT (2) to the desired bakĆ
ing temperature.
3. The INDICATOR LIGHT (3) will go out when
the oven has reached the set operating temĆ
perature.
4. The TIMER (4) is set to measure a cooking
cycle by turning the knob clockwise to the deĆ
sired time. When selecting a cook time less
than ten minutes, turn the knob past the ten
minute interval and reverse direction to the deĆ
sired setting. At the end of the elapsed time
the buzzer will sound. The buzzer is turned off
by rotating the TIMER (4) to the OFF position.
NOTE: The TIMER will not control any temperĆ
ature functions.
