Saving Graphics
The CMX
DL+
provides the user with the ability to save a snapshot of the display
screen and all the current settings of the CMX
DL+
with every reading, or just
save the reading only. Saving the graphics might be advantageous to the user
when the A/B-Scan views will be used to graphically save a picture of the
scanned areas for reporting purposes. It might also come in handy when user
requires backup of all the current CMX
DL+
parameters for each reading.
However, if neither of these requirements are necessary, this option should be
disabled in order make more efficient use to the CMX
DL+
storage capacity.

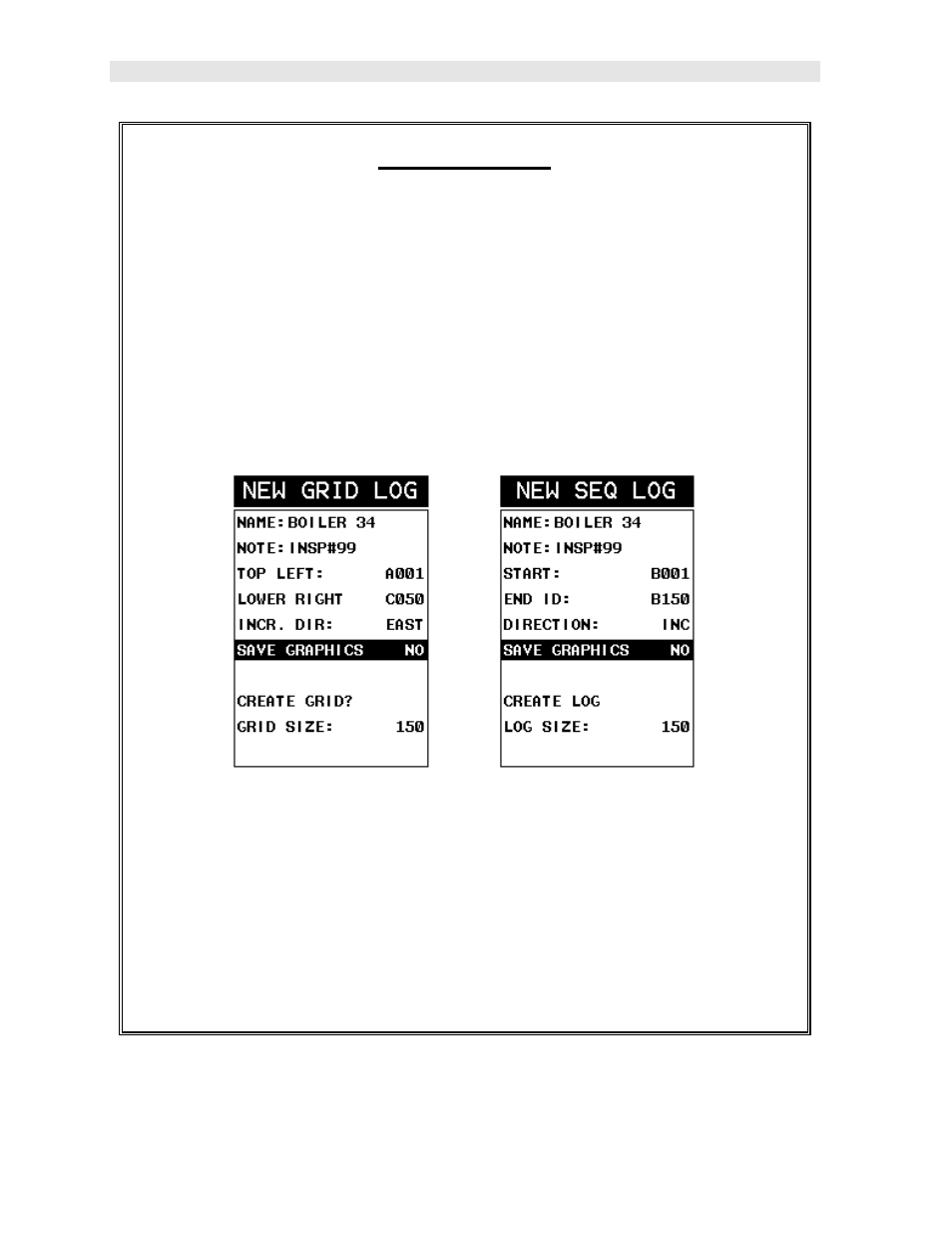

Grid Log Sequential Log
1) Use the UP and DOWN arrow keys to scroll through the new Grid or Seq
List Items until SAVE GRAPHICS is highlighted.
2) Use the LEFT & RIGHT arrow keys to toggle the Increment direction to
YES or NO.
3) Continue on to the next section “Saving a Grid or Seq File”.
