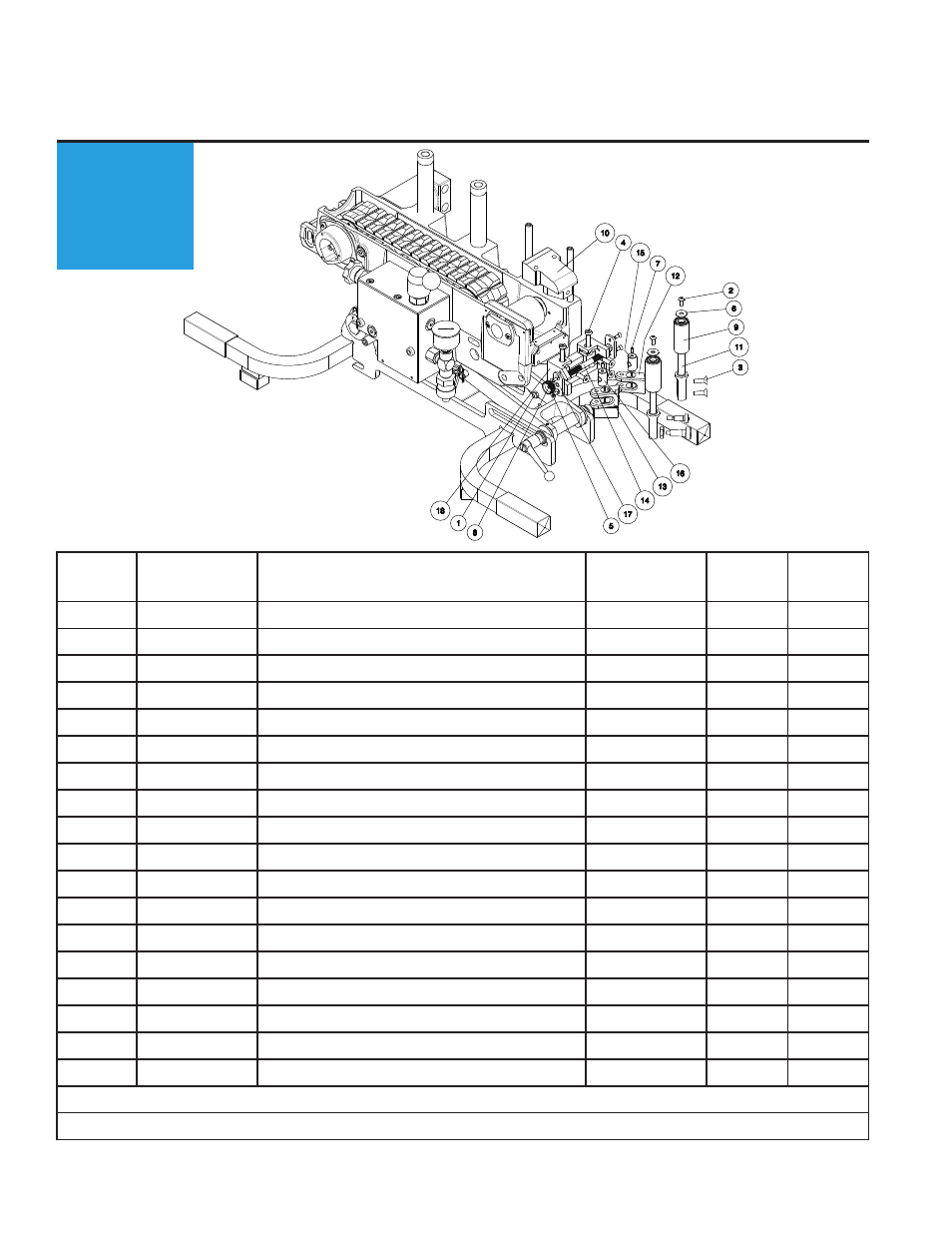

Parts List, RH Cable Guide Roller Replacement Kit
08780639
APPENDIx
M.
RH Cable Guide Roller Kit &
Adjustable Rear Cable Guide Kit
ITEm PART NO DESCRIPTION
REQuIRED
QTY
kIT
QTY
kIT
QTY
1 02186901 Nut, #10-24 Nyloc St GR2 CZ 1 1
2 02288574 Capsrw M05-0.8 x 12 BHSS 18-8 6 1
3 02288584 Capsrw M06-1.0 x 20 CSSS 18-8 5 2 3
4 02288925 Screw, Shoulder M06 Dia-35mm Lg 2 2
5 02288926 Capsrw M04-0.7 x 10 CSSS 18-8 4 4
6 02288989 Flatwasher M06-Fender SS 18-8 2 1
7 02289053 Setscrew M04-0.7 x 10 HXSO NTST 2 2
8 02290177 Knob, Hand-Knurled .75 Dia SS 1 1
9 08780133 Roller, Rear Entry (Assy) 2 1
10 08780135 Pad, Guide-Rear Cable Entry 1 1
11 08780252 Shaft, Vert Guide Roller 1 1
12 08780473 Arm, Pivot RH-Adj Cbl Guide 1 1
13 08780474 Arm, Pivot LH-Adj Cbl Guide 1 1
14 08780475 Shaft, Adjustment-ADJ CBL Guide 1 1
15 08780476 Pin, Pivot RH-ADJ CBL Guide 1 1
16 08780477 Pin, Pivot LH-ADJ CBL Guide 1 1
17 08780479 Plate, Bearing Mnt Assy 2 2
18 08780481 Block, Pivot Mount Assy 1 1
ITEMS 2, 3, 6, 9, 11 COME IN KIT 08780639
ITEMS 1, 3, 4, 5, 7, 8, 10, 12, 13, 14, 15, 16, 17, 18 COME IN KIT 08780482
