30
D. PANEL LAYOuT
The Deluxe Blower Electronic Control Box
uses a touch screen controller with four
function buttons.
DRIVE:
OFF/F1: Disengages Hydraulics from the Blower. The OFF touch screen button
will be highlighted when the unit is stopped. The operator can use either the
touch screen button of the Function button.
ON/F2: Engages Hydraulics to the Blower. The ON touch screen button will be
highlighted when the unit is running. The operator can use either the touch
screen button of the Function button.
CAuTION! Make sure the Hydraulic Flow Control Knob is turned all the way in
before switching electronics to ON. Failure to do so could damage the cable.
TRACTION CONTROL (TRAC CTRL):
OFF/F3: Turns Traction Control feature OFF. The OFF touch screen button will be
highlighted when the Traction Control feature is turned OFF. The operator can
use either the touch screen button of the Function button.
ON/F4: Turns Traction Control feature ON. The ON touch screen button will be
highlighted when the Traction Control feature is turned ON. The operator can
use either the touch screen button of the Function button.

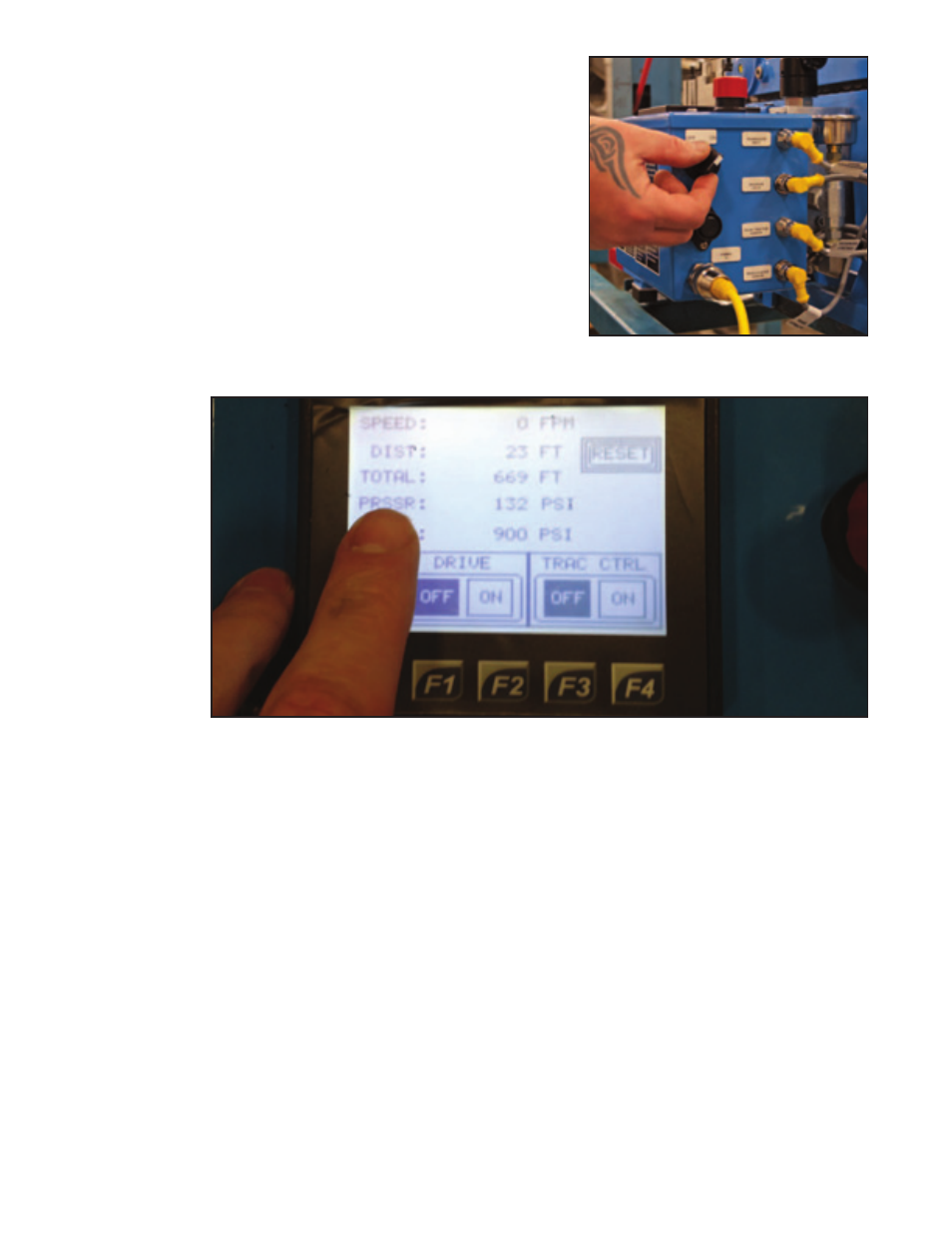

Figure 65. Control Panel
Figure 64. Turn on Control
Box Power
