24
9. Ensure Air Block is depressurized. Open air pressure relief valve by moving
the blower pressure valve handle counter clockwise to the 9 o’clock position
(Figure 43). Shut off the air from the compressor, decompress the air in the
hose and disconnect the hose from the blower.
10. Remove Seal Disk and install Venturi (Figure 44).
NOTE: The venturi with the groove
goes into the bottom and gets
screwed into place while the top half
has the protrusions and sets into the
groove (Figure 45).

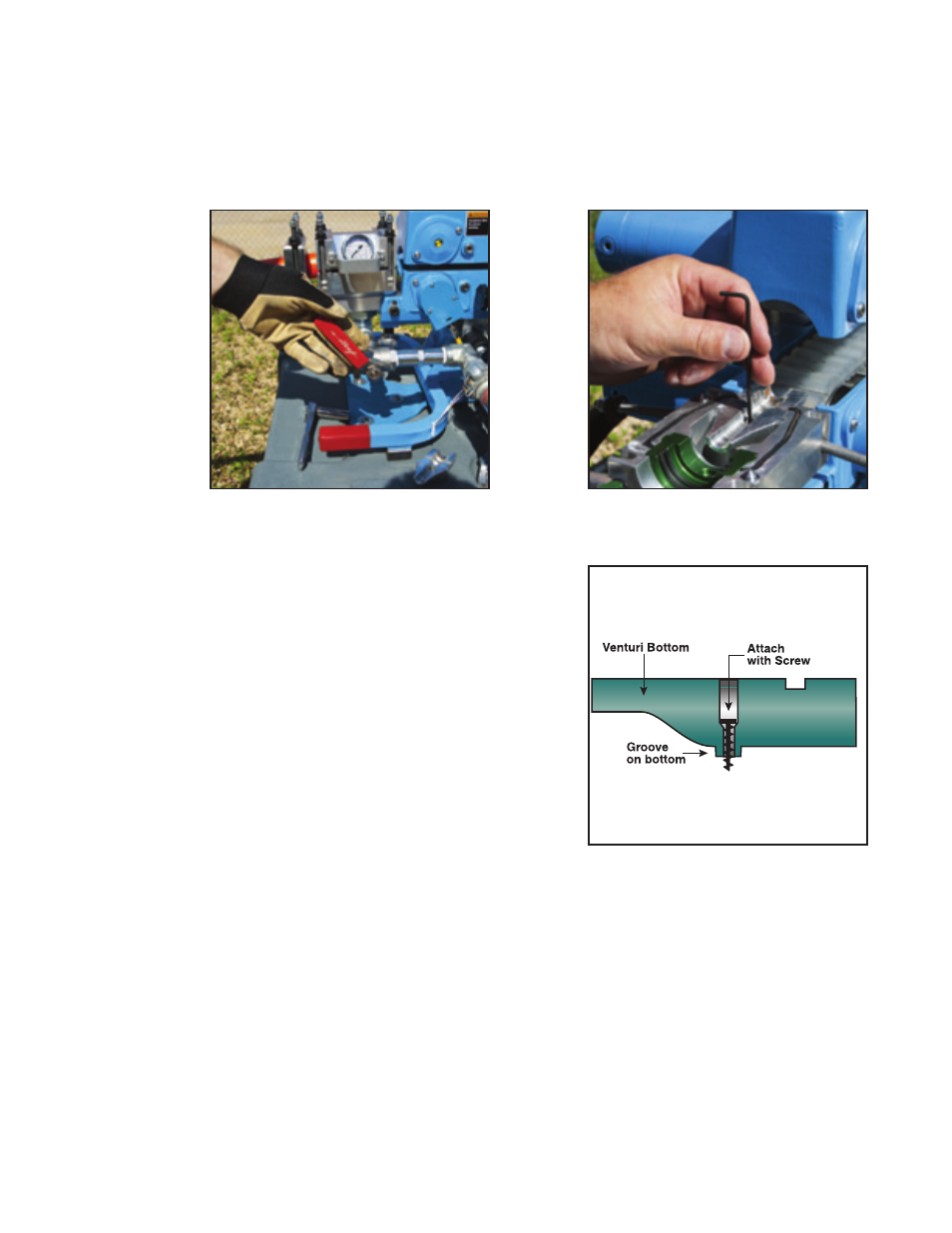

Figure 43. Decompress Air Block Figure 44. Install Venturi
Figure 45. Install Venturi Bottom
and Attach with Screw
