Prepare Cable
The Deluxe Blower is designed so cable may be installed from the side. Follow these
steps so cable is properly positioned to begin operation.
1. Choose the correct Cable Grip and install on fiber optic cable (Figure 46)
(See Tables 1 & 2, on page 18).
2. Install 5/8" (16 mm) Swivel on Cable Grip. Grip must be firmly secured to
cable (Figure 47). The eye on the grip can be compressed to fit smaller
diameter conduits. The eye of a new grip can be taped with electrical tape in
order to make it narrower and travel more easily through the conduit.
3. Choose the correct Carrier and install on Swivel (Figure 48).
4. Raise upper Tractor Drive Cover with turn crank (Figure 49). Open the rear
cable guide roller by pulling out spring plunger and rotating the roller out
(Figure 50).
5. Tilt Blower forward (Figure 51).
25

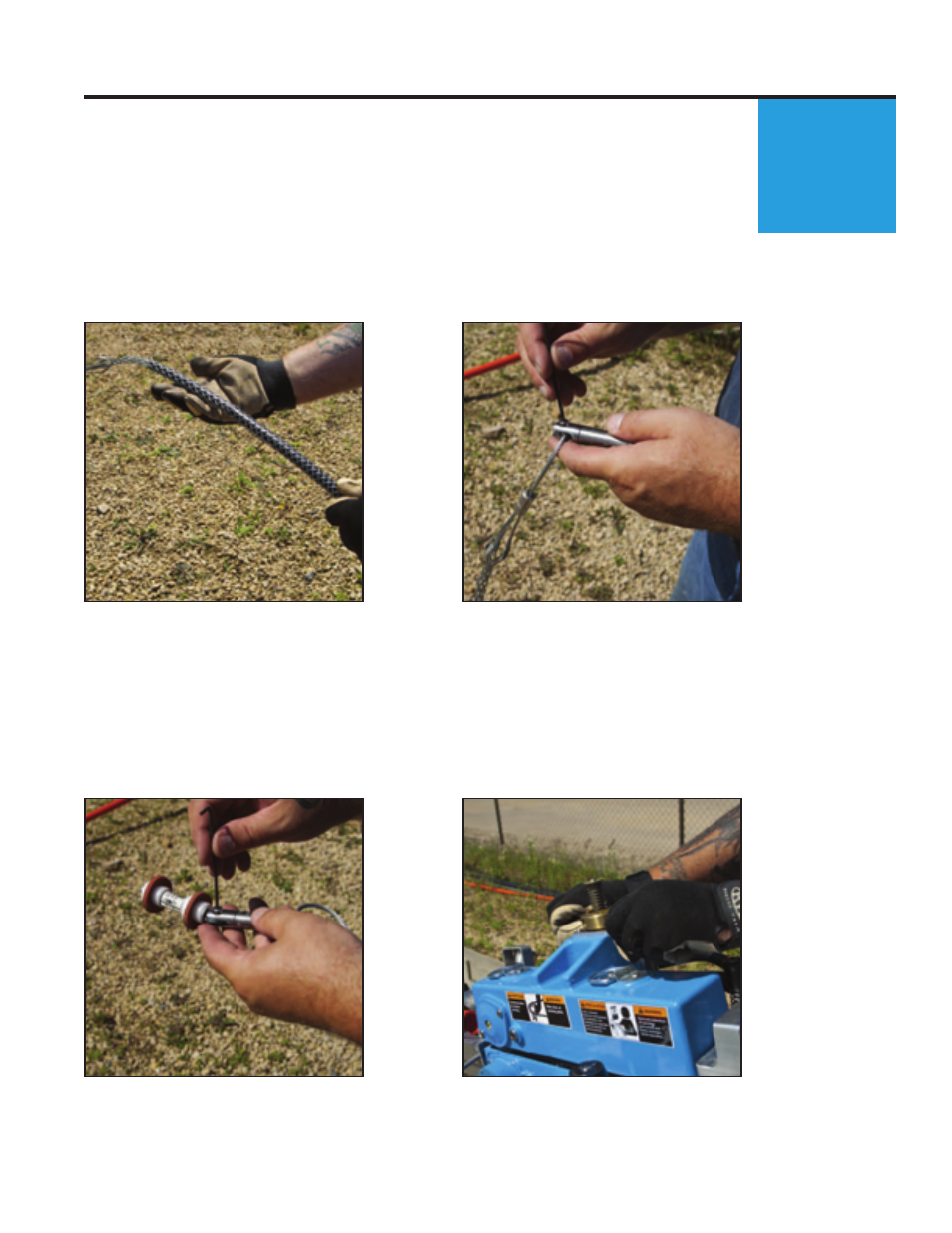

Figure 48. Install Carrier Figure 49. Raise Tractor Drive
with Turn Crank
Figure 46. Install Cable Grip on
Fiber Optic Cable
Figure 47. Install Swivel on
Cable Grip
