5. Choose the correct Venturi to fit the cable being installed. Do not install at
this time!
6. Place conduit in the
Conduit Seal and Conduit Clamp. Note placement up to
ridge on Conduit Seal (Figure 24).
7. Clamp conduit in place (Figure 25).
8. Place Seal Disk in Venturi slot. (Figure 26).
9. Close
Air Block Cover and secure (Figure 27). Tighten nuts securely, but do
not over tighten. Use a cross-tightening procedure.

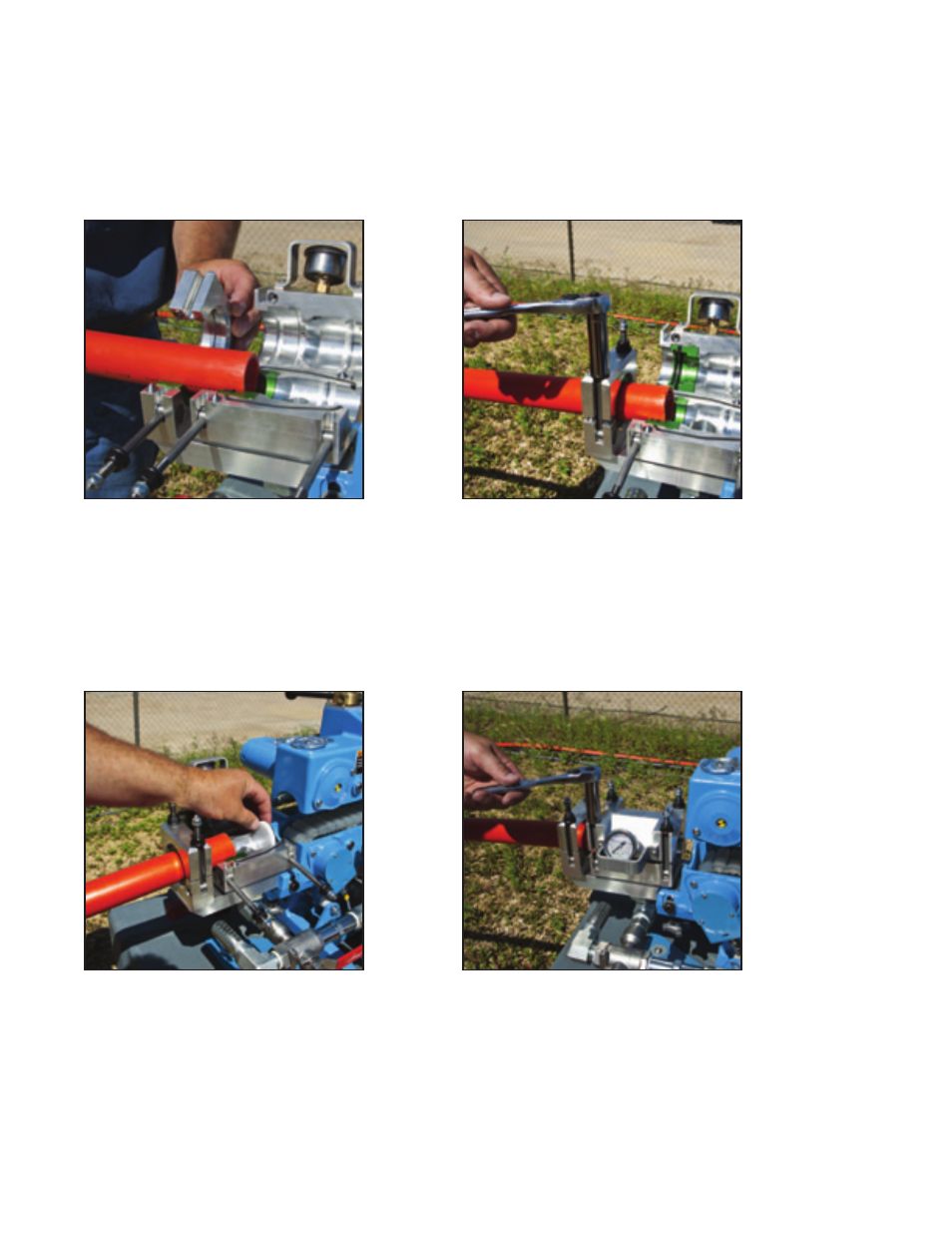

Figure 24. Placement of Conduit
in Conduit Seal & Conduit Clamp
Figure 25. Clamp Conduit
in Place
Figure 26. Installing Seal Disk Figure 27. Tighten Air Block
Cover
