10. Plug receiving end of Conduit with a properly sized Conduit Pulling Eye
(Figure 28) (Appendix R pg. 62).
11. Choose the correct
Pulling Grip & install on receiving end of Conduit
(Figure 29).
12. Connect the Air Compressor (Figure 30).
a. Ensure Air Valve is off before connecting air hose.
b. Attach the hose supplied with the air compressor to the air compressor
coupling. The blower air valve assembly is equipped with a claw type
connector. Use safety clips on all pneumatic hose connections (Figure 31).
c. Observe all safety procedures.
d. Route all hoses properly to prevent tripping over them.
!wARNING: Forced air creates flying debris. Always wear personal
protective equipment. Severe personal injury could result.
!wARNING: Ensure no personnel are in the destination access vault
during the blowing operation. Severe personal injury could result.

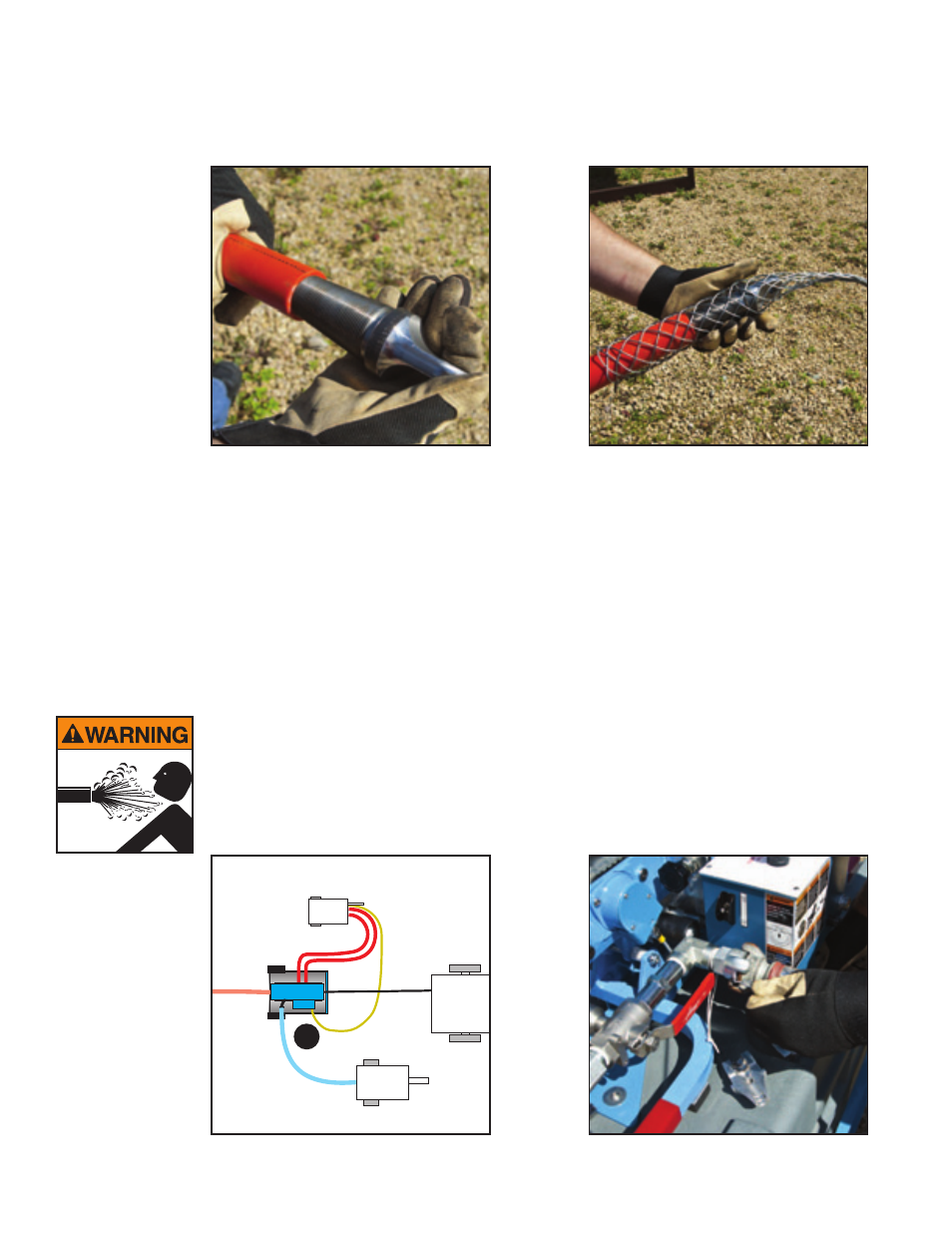

Figure 28. Installing Conduit
Pulling Eye
Figure 29. Installing Pulling Grip
OPERATOR
HYDRAULIC
POWER
SOURCE
INNERDUCT
AIR HOSE
FIBER
OPTIC CABLE
ELECTRICAL HOOK UP
TO POWER SOURCE
CABLE
REEL
HYDRAULIC
HOSES
DELUXE LW
BLOWER
AIR
COMPRESSOR
Figure 30. Typical Connections Figure 31. Installing Air hose with
Safety Clips
