ImPORTANT: It is recommended that if a reel-tensioning unit is not being used,
the cable reel should then be kept under control by a second operator who is
required to wear proper safety equipment and maintain a proper distance from
the cable.
A. FINAL INSPECTION
!CAuTION: Before placing the blower into operation, always perform a
final inspection of all components used.
1. Check that the Cable Grip is attached to conduit on receiving end.
2. Notify crew that preparations are complete and cable blowing is to begin.
Blower Operating Instructions
A. OBSERVER AT ExIT PIT
Station an observer with a 2-way communication device, at the far end of the Conduit,
where the Cable carrier will exit.
B. CONNECT ThE hYDRAuLIC SYSTEmS (Figure 59)
The Deluxe Blower’s hydraulic system uses quick-disconnect couplings. Keep all
connections clean to avoid contamination and possible system failure. Use hose end
caps (supplied). A contaminated hydraulic system will effect the operation of the
cable blower and may invalidate your product warranty. Take caution in routing the
hoses to prevent a tripping hazard. Follow these steps to connect the hydraulic
components:
1. Attach the quick-disconnect couplings to the hydraulic power supply (Figure 60).
2. Start the hydraulic power unit and check all connections for leaks with a piece
of cardboard. In cold weather, run hydraulic power supply until hydraulic oil
warms up.
OPERATOR
HYDRAULIC
POWER
SOURCE
INNERDUCT
AIR HOSE
FIBER
OPTIC CABLE
ELECTRICAL HOOK UP
TO POWER SOURCE
CABLE
REEL
HYDRAULIC
HOSES
DELUXE LW
BLOWER
AIR
COMPRESSOR

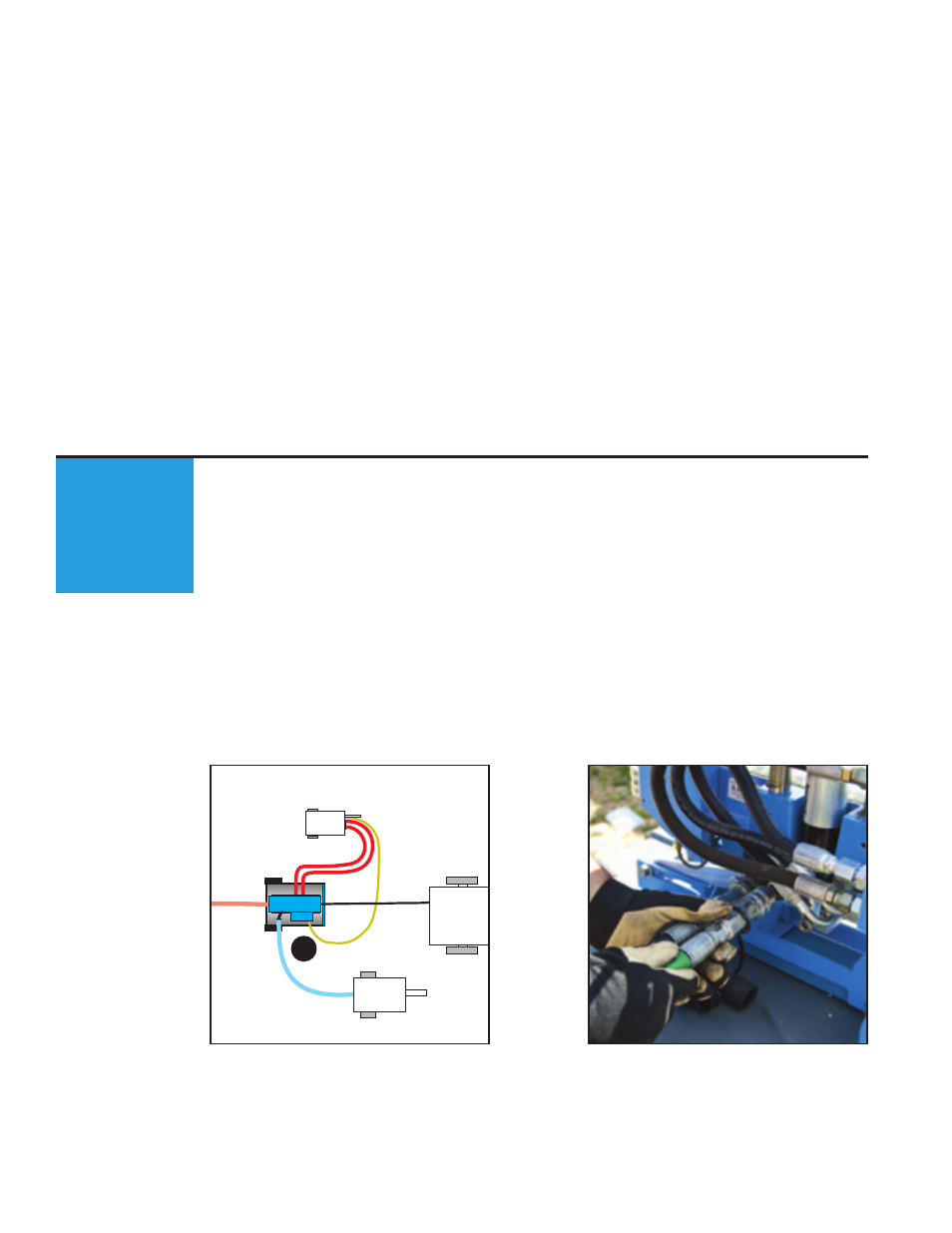

Figure 59. Typical Set-up Figure 60. Attach hydraulic
hoses
