31
SCALE: Touching the touch screen on any of the Units (FPM/MPM, FT/M,
PSI/BAR) will open a UNITS screen. Select from Metric or Imperial units, and
press
ENTER.
SPEED: Displays cable speed in Feet/Min or Meters/Min
DIST: Displays distance of current installation in Feet or Meters – Resettable
RESET: Touch Screen button that will reset DIST to 0
TOTAL: Displays lifetime distance on the machine in Feet or Meters –
Non Resettable.
PRSSR: Displays hydraulic working pressure in PSI or BAR. This pressure should
match the pressure shown on the analog pressure gauge.
LImIT: Displays the pressure limit set point in PSI or BAR. When the PRSSR value
exceeds this set limit, the tractor drive will be stopped. This feature is NOT
dependent on having the
TRACTION CONTROL system turned ON. To change
the LImIT value, touch the screen in the LImIT: xxxx area, and a keypad will
appear. Enter the desired limit value and press ENTER to save the new value.
Press
ESC to exit screen without saving the new value.

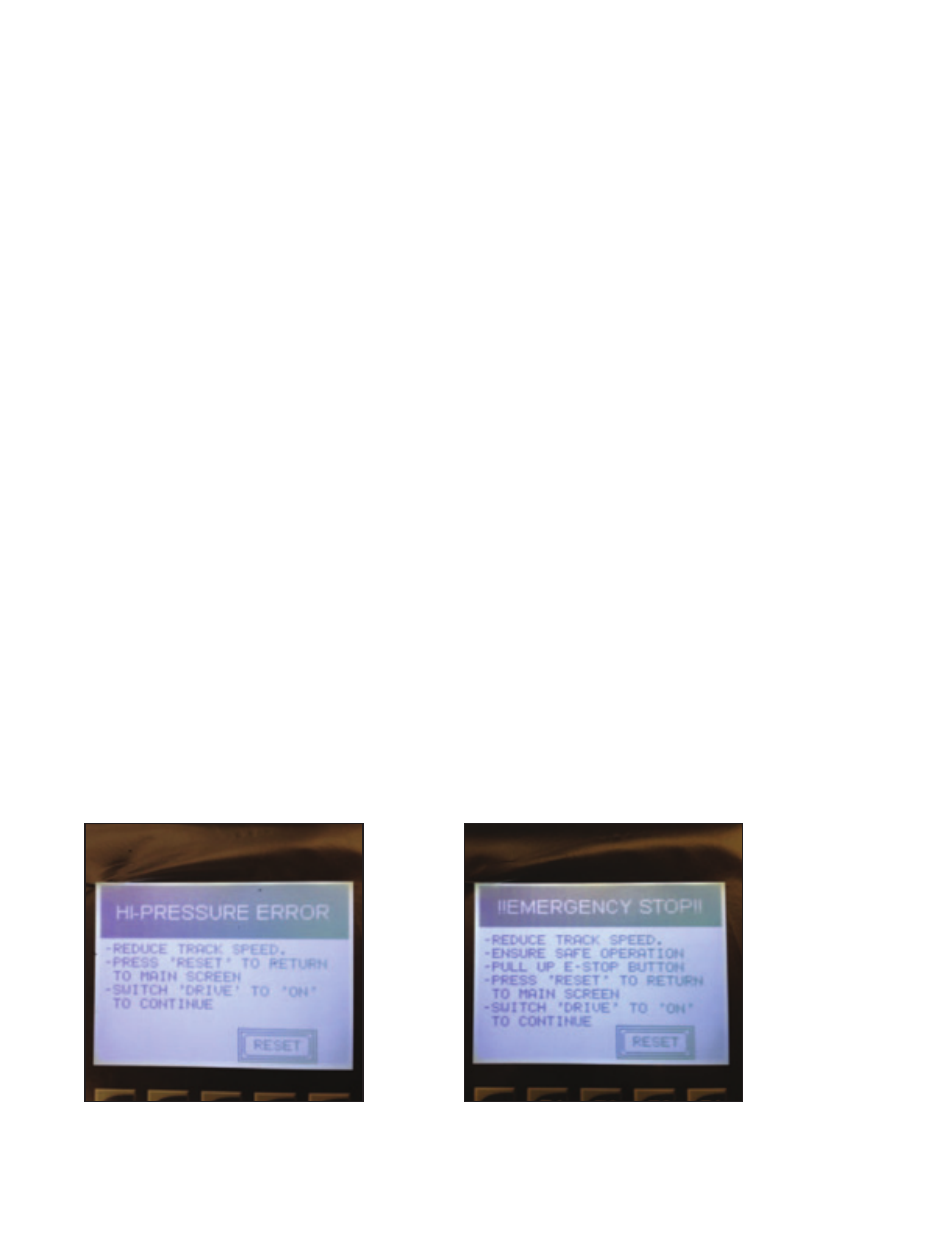

When the pressure LImIT is exceeded, the display will show:
HI-PRESSURE ERROR – follow on-screen instructions and press RESET at
bottom of screen to return to operation (Figure 66).
EmERGENCY STOP BuTTON: Press the Emergency Stop button at any time to
immediately stop the tractor drive. When the Emergency Stop button is pressed,
the display will show:
!!EMERGENCY STOP!! – follow on-screen instructions and press
RESET at
bottom of screen to return to operation. The EMERGENCY STOP screen will not
clear until the Emergency Stop button is pulled up (Figure 66A).
Figure 66A. Emergency Stop Figure 66. hi-Pressure Error
