2 • Important: Always read and follow operating instructions.
Principal Operating Parts
Do It Now!
Now is a good time to contact product service to
start warranty, otherwise warranty starts at time of
shipment.

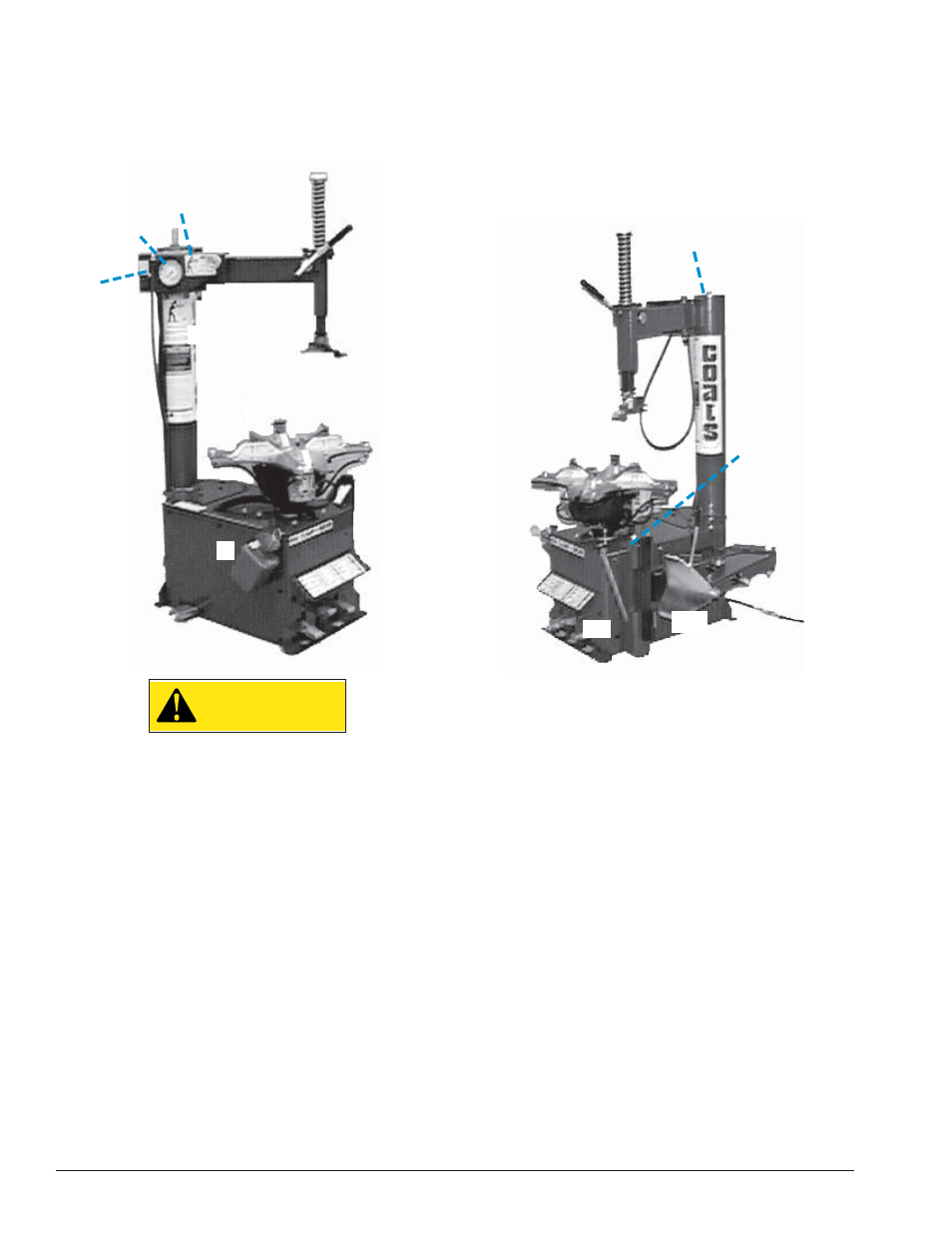

Know Your Unit
Compare this illustration with the unit before placing it
into service. Maximum performance and safety will be
obtained only when all persons using the unit are fully
trained in its parts and operation. Each user should learn
the function and location, of all controls.
Prevent accidents and injuries by ensuring the unit is
properly installed, operated and maintained.
CAUTION
Replace any damaged or missing safety
decals. They are available from COATS, (800)
688-6359.
1 Tower — Support for horizontal and vertical slides,
also air storage tank.
2 Air Gauge — Registers tire pressure when air chuck
is attached to valve stem and inflation pedal is released.
3 Inflation Pedal — Two-position pedal that allows
inflation of tires through air hose and clip-on chuck.
4 Clamp Control Pedal — Three-position pedal that
opens, holds or closes rim clamps.
5 Table Top Pedal — Three-position pedal that controls
rotation of table top (forward, off, reverse).
6 Bead Loosener Control Pedal — Controls operation
of bead loosener shoe.
7 Table Top — Rotating chuck for tire changing.
8 Clamp — Secures wheel to table top for tire chang-
ing.
9 Lube Bottle — Dispenser for rubber lubricant.
10 DuckHead ® (Combination Mount/Demount Tool)
— Mounts and demounts tire from wheel.
11 Swing Arm Adjustment Knob — Adjusts swing
arm/vertical slide assembly for proper horizontal posi-
tioning of mount/demount tool.
12 Vertical Slide Locking Handle — Locks and
unlocks vertical slide and sets correct vertical position
to maintain tool/wheel clearance.
13 Bead Lifting Tool — Used to lift and position tire
bead correctly on Duckhead mount/demount tool.
14 Bead Loosener Shoe — Pivoting shoe for loosen-
ing tire beads.
15 Oil Check Dipstick — For transmission oil level.
16 Bead Sealing Nozzles — Expands tire sidewall to
bead seat area of rim to seal and allow inflation.
17 Pressure Safety Valve — The high pressure safety
valve is set to exhaust at line pressures above 185 PSI.
18 Release Valve — Allows the manual release of air
pressure from tire when clip-on chuck is attached to tire
valve.
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
17
18
9
