Figure 3 – CiDRA Use of Foundation Fieldbus Protocol with SONARtrac Transmitters User Manual

Page 47

background image

Copyright © 2010 CiDRA Corporate Services

Page B-3

20958-01 Rev 02

Setup the communication to the DP/PA coupler using the ‘Set PG/PC
Interface’ option. The following are the settings for the Coupler used
in this example:

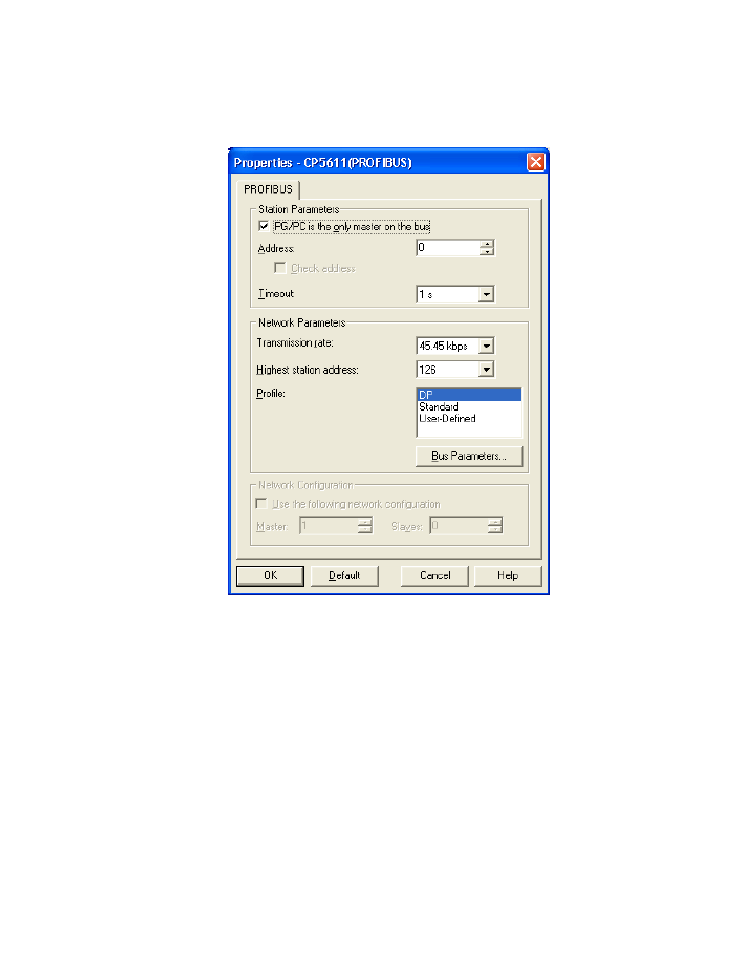

Figure 18

Communications Setup
