Note: For this example descriptive names have been given to
the device. By default, the Function Blocks will be given
generic names.
On the setup an image to be displayed has been assigned and
the manufacturer info file (“mfr_info.txt”, part of the Configurator
program), which includes information about SONARtrac and
CiDRA has been modified. Double-clicking on the SONARtrac
icon brings up the following dialog box:

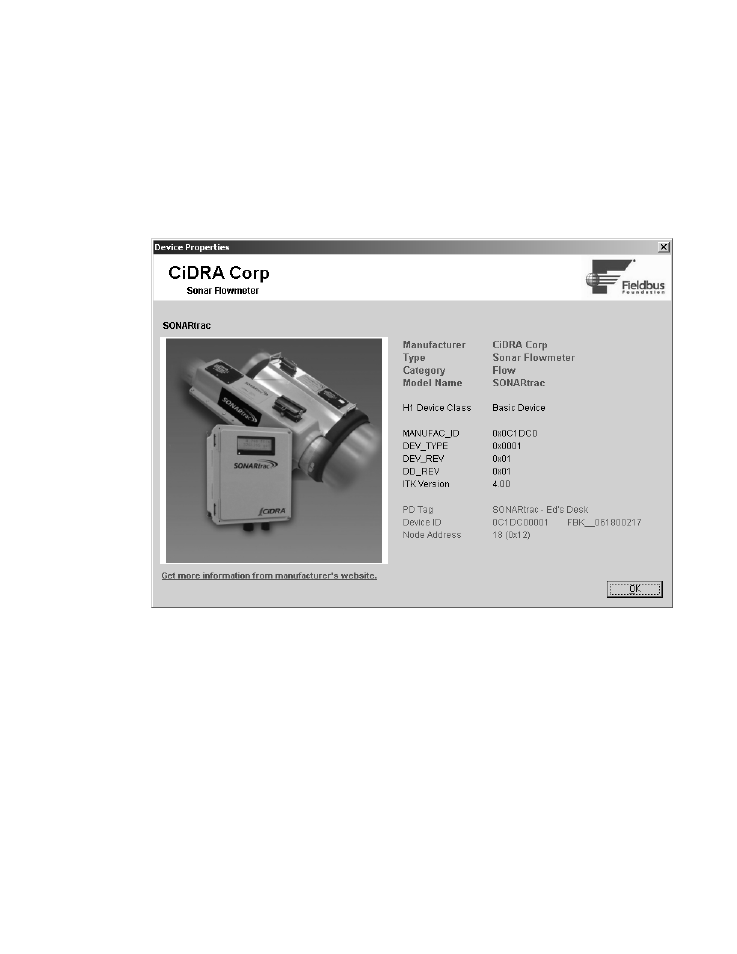

Figure 8 Dialog Box Example
The dialog box includes a picture the user may change, a link
to the CiDRA website and a description of the device. The files
necessary for this can be found as part of the Fieldbus DDL
files.
