The user may then select one or more settings to change by clicking
on them, changing a value, and then clicking the ‘Write Changes’
button when done.

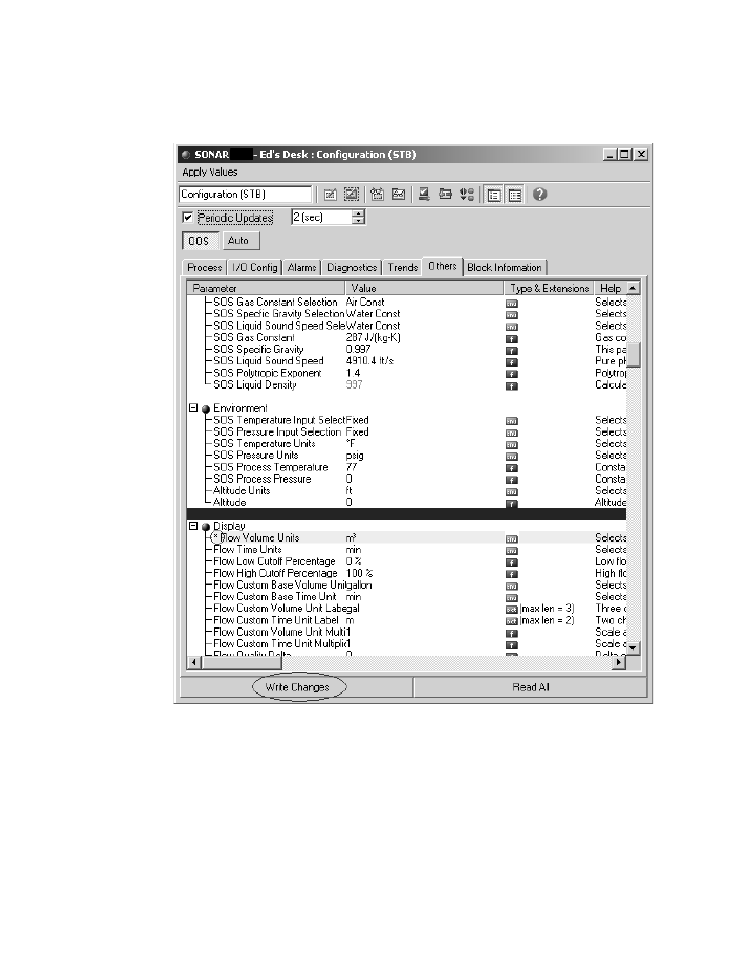

Figure 13

Selecting Settings, Changing Values and Writing Changes

The asterisk next to the setting indicates it will be modified. If you
select more than one thing to change, the modified parameters will be
highlighted in yellow.

Once the changes are written, the asterisk and yellow highlight will be
removed.
