Figure 14 – CiDRA Use of Foundation Fieldbus Protocol with SONARtrac Transmitters User Manual

Page 42

Text mode
Original mode

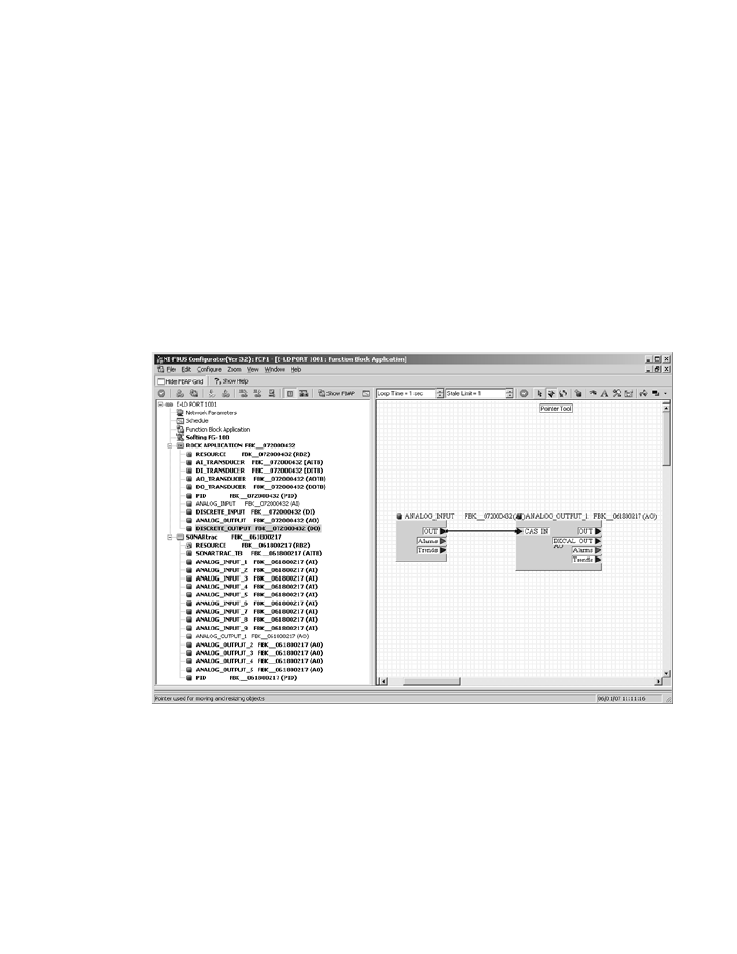

Creating a Function Block Application (FBAP) to
Transmitter

This example requires the addition of another Softing FBK board
running their ‘Rock’ application, and will have the Rock send pressure
values to the transmitter. Simply connect the Rock device to the
Fieldbus power hub.

Using Configurator:



Click the “Show FBAP” button



Drag “Analog Input” from Rock to FBAP



Drag “Analog Output 1” from SONARtrac to FBAP



Select wiring tool and wire OUT from Rock AI to CAS IN on
SONARtrac AO as shown:

Figure 14

Creating a Function Block Application (FBAP) to Transmitter
