Copyright © 2010 CiDRA Corporate Services

Page A-3

20958-01 Rev 02

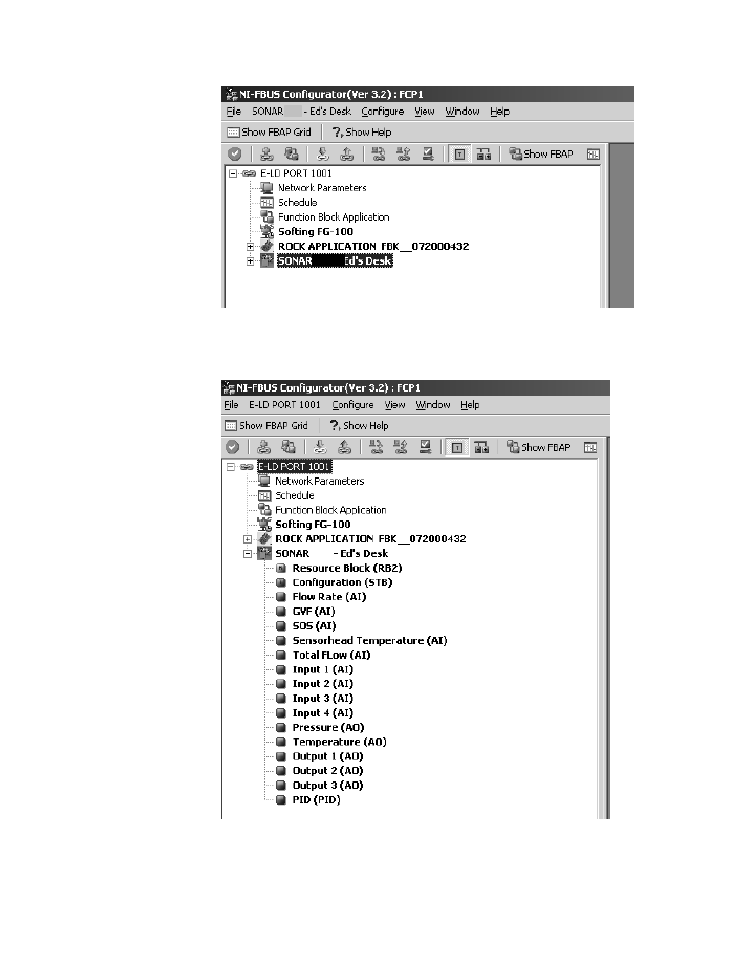

Figure 6

NI-FBUS Configurator Display Example

Opening the SONAR object by clicking on the ‘+’ sign will open
up all the included ‘Function Blocks’ available:

Figure 7

Opening Function Blocks Example
