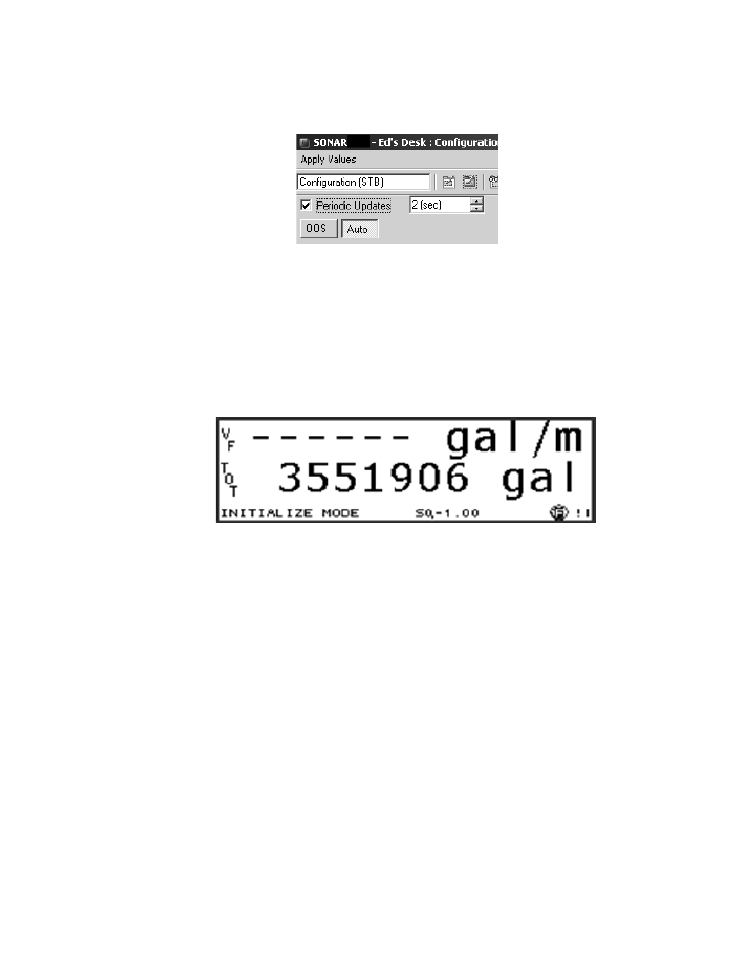

The top-left of the window shows the current state of the Transducer
Block – OOS (Out Of Service) or Auto:
Figure 11 Transducer Block State
‘Auto’ indicates the device is running normally.
The bulk of the window lists the parameters, grouped by function, their
current value, the type and help text, as read out of the DDL file.
Values in gray are read-only.
To change a setting, you must first click on the ‘OOS’ button. The
transmitter display will indicate it is OOS by changing the ‘F’ indication
to a reverse ‘F’:
Figure 12 Reverse ‘F’ Indicator
