7. Replace the bay cover (see sidebar) and screws (make sure you reconnect the
fan cable before screwing down the bay cover).
Cover Pins
Note that Model A com-
puters have four cover
pins, Model B comput-
ers have five. These
pins need to be aligned
with slots in the case to
insure a proper cover fit,
before screwing down
the bay cover

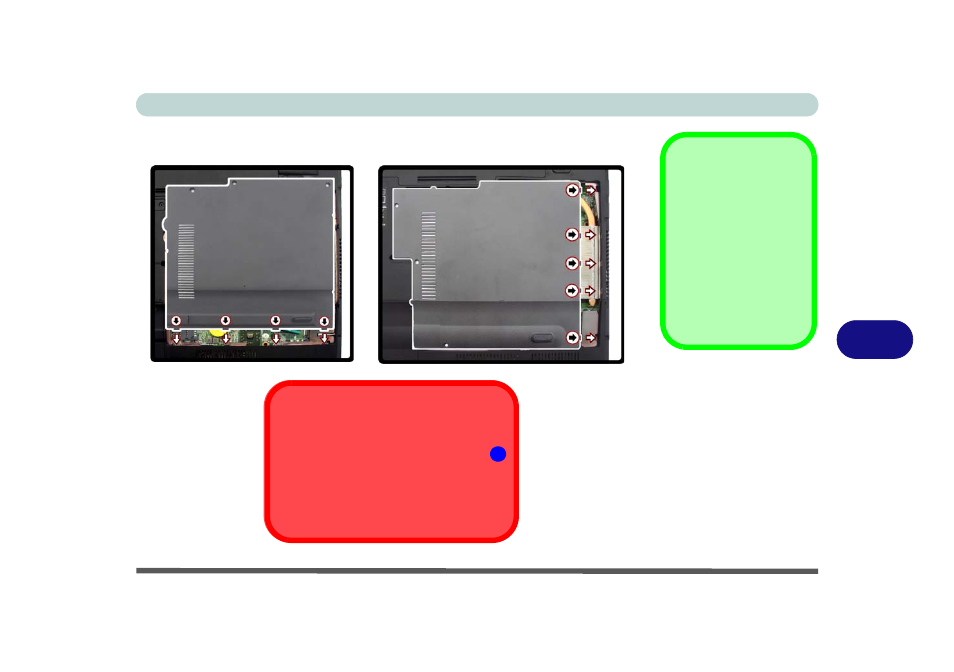

Figure 7 - 25
Cover Pin
Alignment
Model B
Model A
Model C
Fan Cable & Cover
Make sure you reconnect the fan cable
before screwing down the bay cover. Note
the information on replacing the RAM &
CPU bay cover in
“Cover Pins” on page 7
- 31 .
