System Map: Left View 1 - 13
Quick Start Guide
1

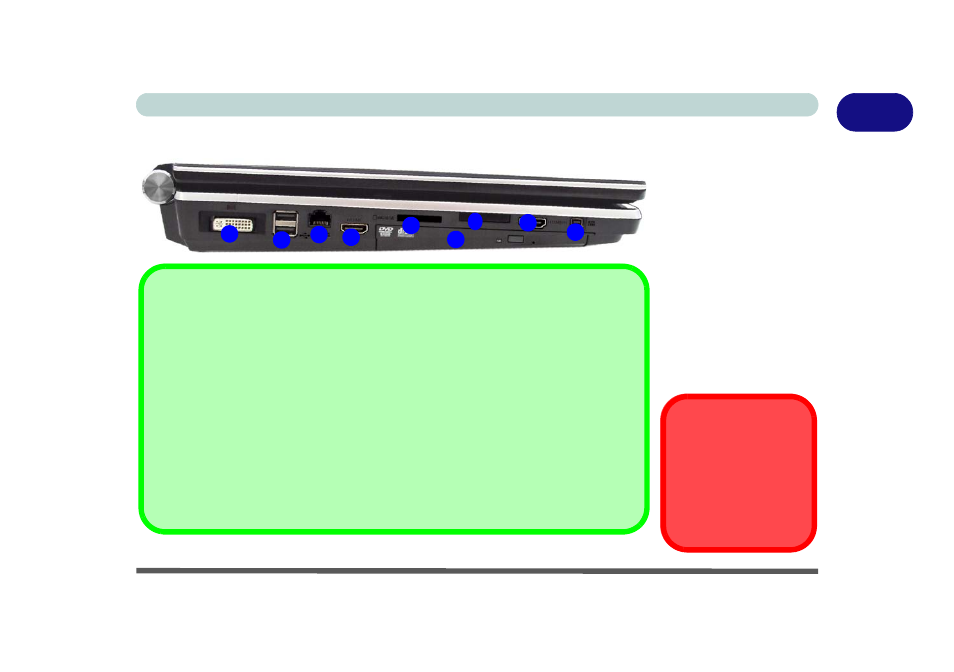

System Map: Left View
Figure 1 - 7
Left View
1. DVI-Out Port
2. 2 * USB 2.0 Ports
3. RJ-45 LAN Jack
4. HDMI-Out Port
5. 7-in-1 Card Reader
6. ExpressCard 34 Slot
7. HDMI-In Port
8. Mini-IEEE 1394 Port
9. Optical Device Drive
Bay
See
for a more
detailed description of the
ports & jacks etc.
USB Ports
Note that the connec-
tions to the USB ports
only fit one way, do not
force them.
1
2
3
4
5
9
6
8
Mini-IEEE 1394 Port
The Mini-IEEE 1394 port only supports SELF POWERED IEEE 1394 devices.
7-in-1 Card Reader
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick)
MS Pro (Memory Stick Pro) / MS Duo (requires PC adapter)
Mini SD (requires PC adapter) / RS MMC (requires PC adapter)
HDMI Ports
Note that the HDMI Ports support video and audio signals to attached external displays
(also see
).
