1 - 12 System Map: Right View

Quick Start Guide

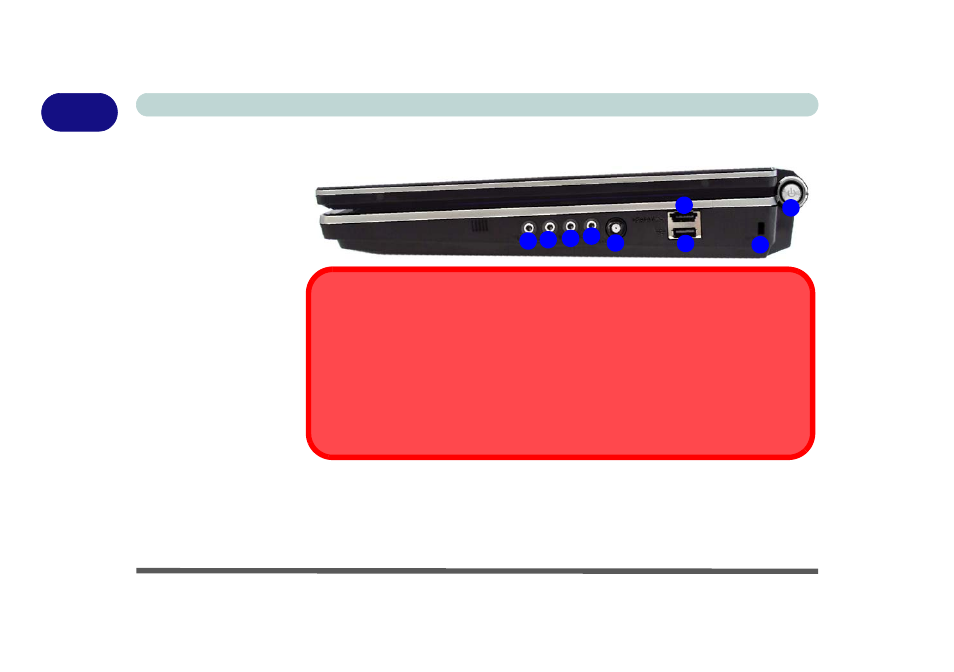

System Map: Right View

Figure 1 - 6
Right View

1. Headphone-In Jack
2. Microphone-In Jack
3. Line-In Jack
4. S/PDIF-Out Jack
5. Cable (CATV)

Antenna Jack

6. Combined eSATA/

USB Port

7. USB 2.0 Port
8. Security Lock Slot
9. Power Button

*Enabled with Optional
Mini-PCI TV Tuner Only

See

Appendix A

for a more

detailed description of the
ports & jacks etc.

1 2

TV Tuner Module Support

Note that the TV Tuner module (factory) option is supported by the Windows Media Cen-
ter software. Windows Media Center is not included in Starter or Home Basic versions
of Windows 7.

USB Ports

Note that the connections to the USB ports only fit one way, do not force them.
