Upgrading The Computer
Upgrading the System Memory (RAM) - 2 6 - 17
6
10. Gently pull the two release latches (
&
)
on the sides of the memory socket in
the direction indicated below.
11. The RAM module
will pop-up, and you can remove it.
12. Pull the latches to release the second module if necessary.
13. Insert a new module holding it at about a 30° angle and fit the connectors firmly
into the memory socket.
14. The module’s pin alignment will allow it to only fit one way. Make sure the module
is seated as far into the socket as it will go. DO NOT FORCE the module; it should
fit without much pressure.
15. Press the module in and down towards the mainboard until the socket levers click
into place to secure the module.
16. Replace the screws, shielding plate and keyboard (make sure you reconnect the
keyboard cable).

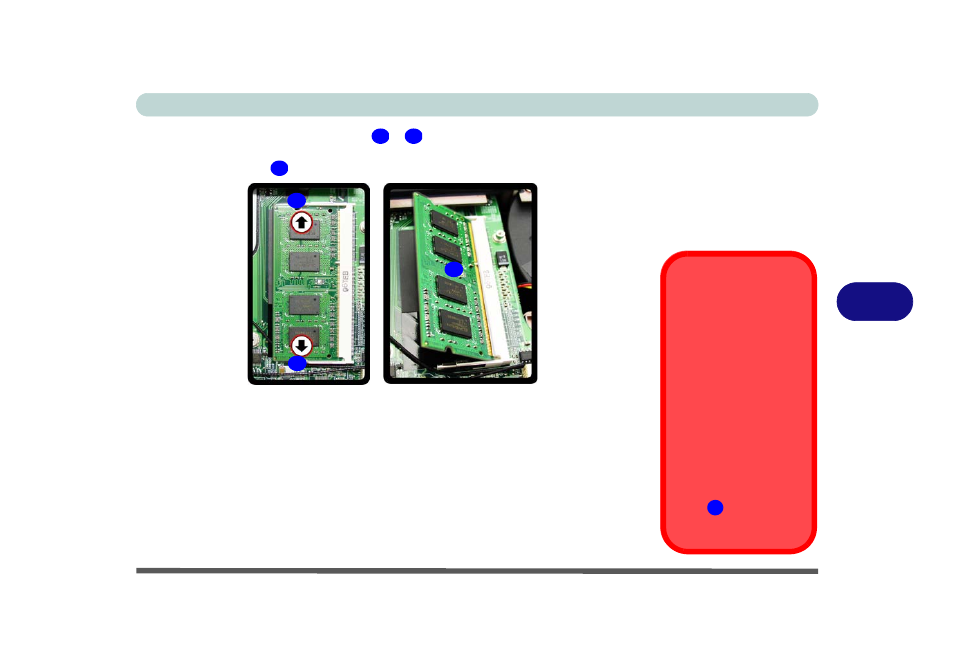

Figure 6 - 19
RAM Module
Removal
Contact Warning
Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module’s
performance.
LED Module Cable
Make sure you recon-
nect the LED Module
cable
