2. Installing the WLA-9000AP
AirLive WLA-9000AP User’s Manual 8

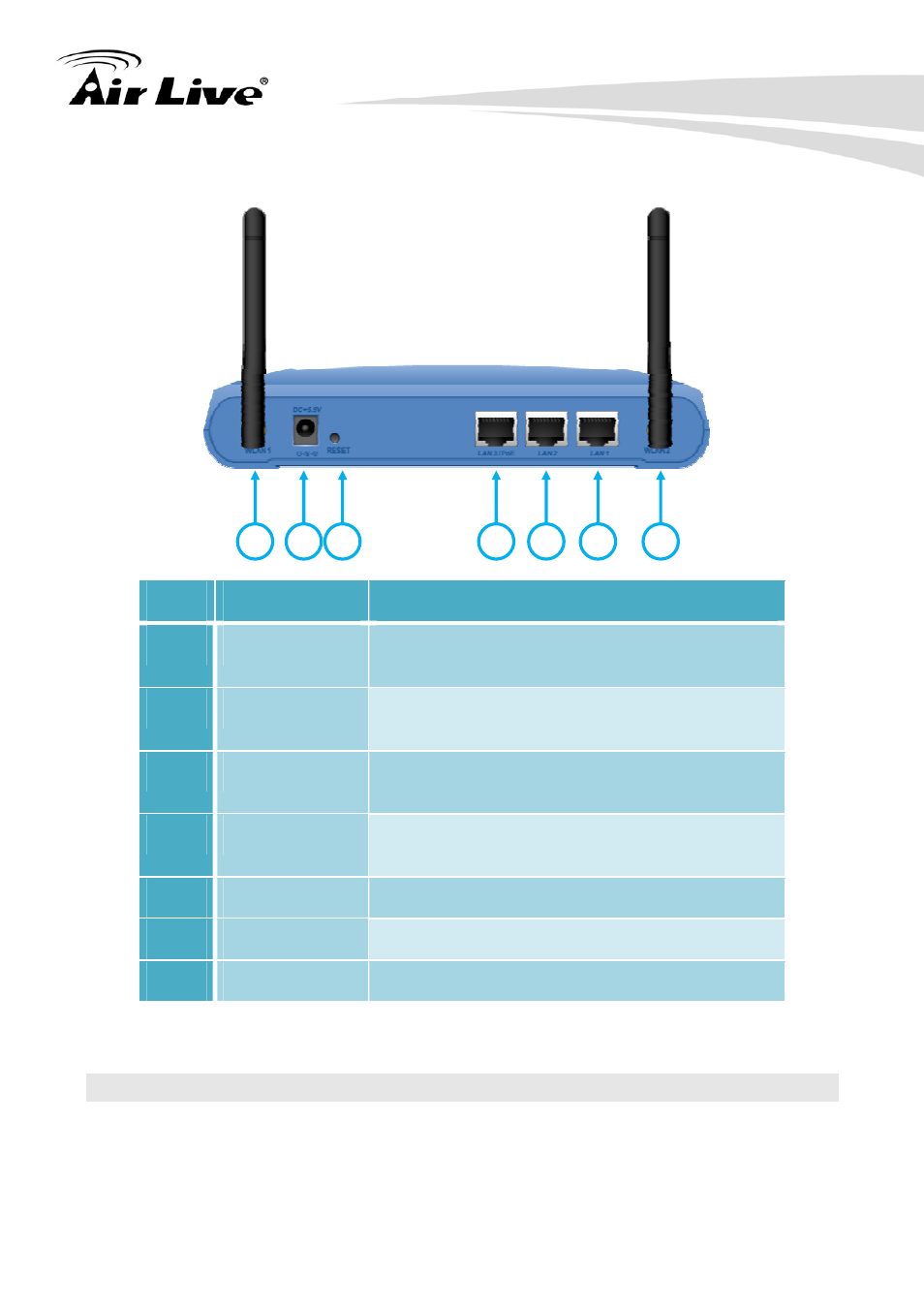

2.4.2 Back side introduction
Port # Display Description
1
WLAN1 Detachable antenna with R-SMA connector. 2
indoor 2dBi antennas are delivered.
2
Power Adaptor 5.5V 2.5A power supply adaptor delivered with
product.
3
RESET Reset button for rebooting and reset device as
default factory value.
4
LAN 3/PoE LAN port 3 and PoE port. It can be plug 802.3af
compliant PoE as power and data supply.
5
LAN 2 LAN port 2
6
LAN 1 LAN port 1
7
WLAN2 Detachable antenna with R-SMA connector.
2.5 Configuration steps
This section describes configuration required for the WLA-9000AP before it can work
properly in your network.
Set up the device
1 2 4 5 3 6 7
