2. Installing the WLA-9000AP
7 AirLive WLA-9000AP User’s Manual
2.4 Knowing Your WLA-9000AP

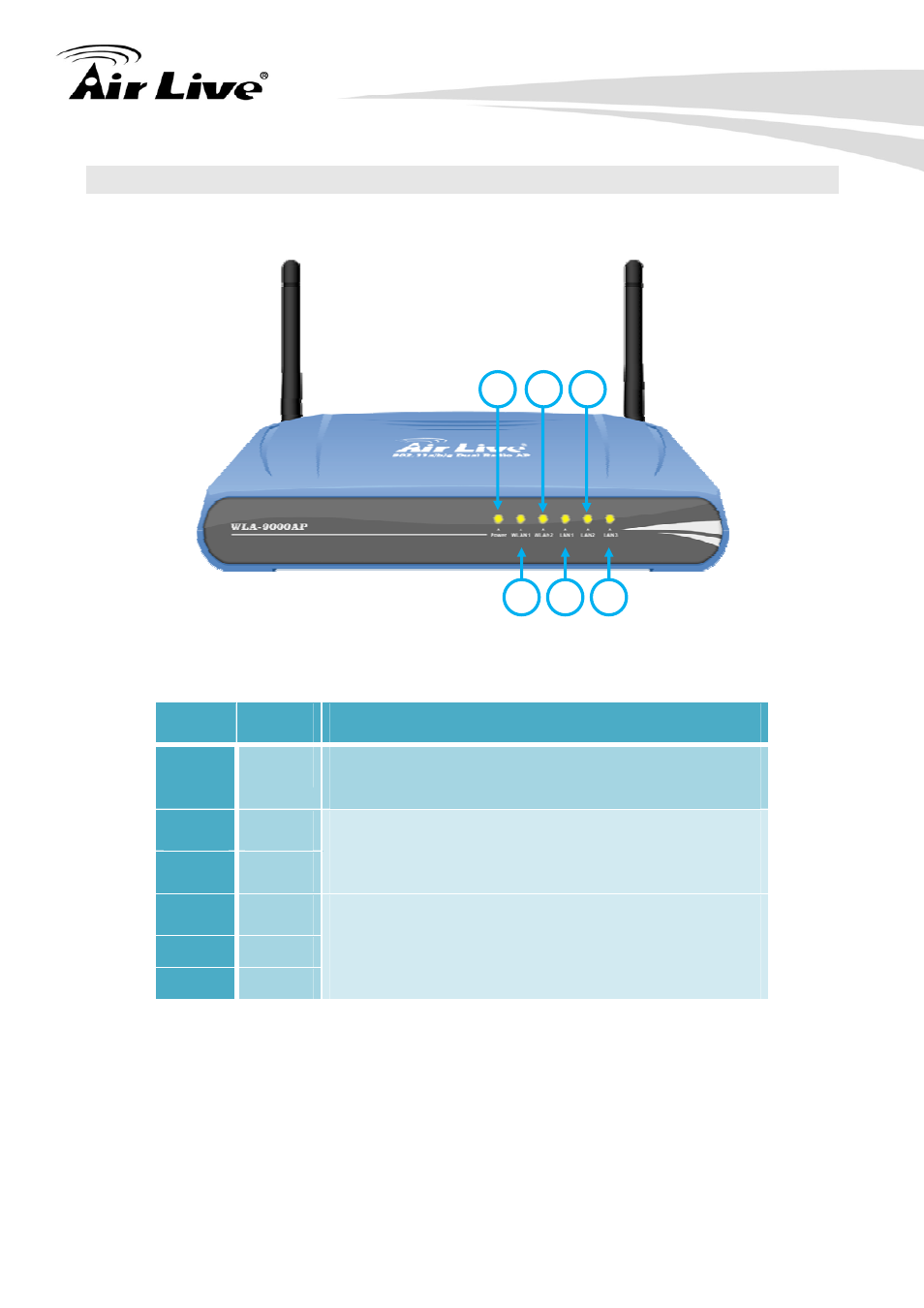

2.4.1 Front side introduction
LED # Display Description
1
Power Solid Green LED while the device is powered on,
either by power adaptor or PoE.
2
WLAN1
3
WLAN2
Solid Green LED while the device is powered on.
Blinking while there is Data transmission, dark when
this interface is turn off.
4
LAN 1
5
LAN 2
6
LAN 3
LAN ports status LED, Solid Green LED shows
when a port is actively connected, blinking while
there is data transmission, turns into dark when this
disconnected.
2 4 6
1
3
5
